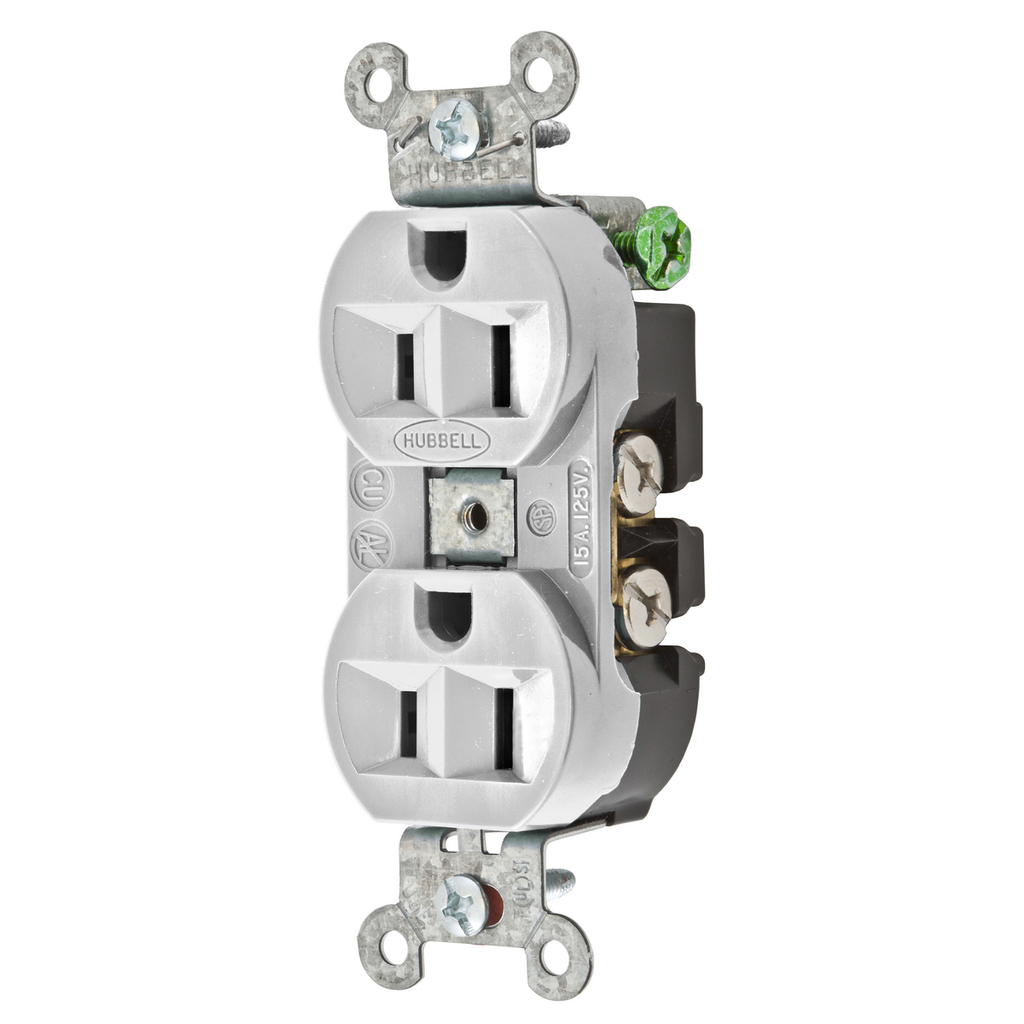

Product image for Hubbell 5262OW Receptacle, DUP SB, HUBPRO, 15A 125V, SM , OW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell 5262OW Receptacle, DUP SB, HUBPRO, 15A 125V, SM , OW

Manufacturer: Hubbell / Kellems | Catalog # 5262OW | North Coast Part # 419618
$10.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Office White

Technical Information

Amperage
15 Amp
Applications
Hubbell-Pro Heavy Duty Applications
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Self
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Traditional, Groove
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127682
Color
Office-White
Environmental Conditions
Indoor Only
GTiN
00783585127682
Product Series
Hubbell-PRO
Product UPC
78358512768
Weight
0.2 lb

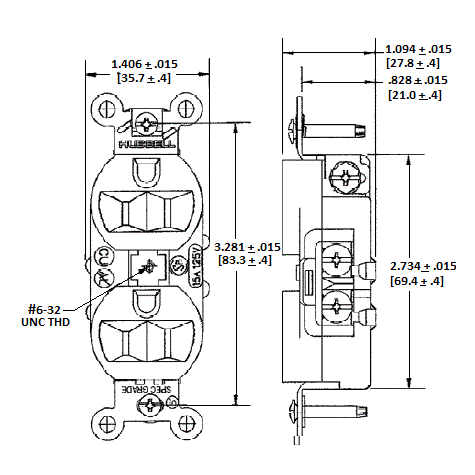

Dimensions

Height
1.09 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
USA
Features
  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts
  • Self Grounding
