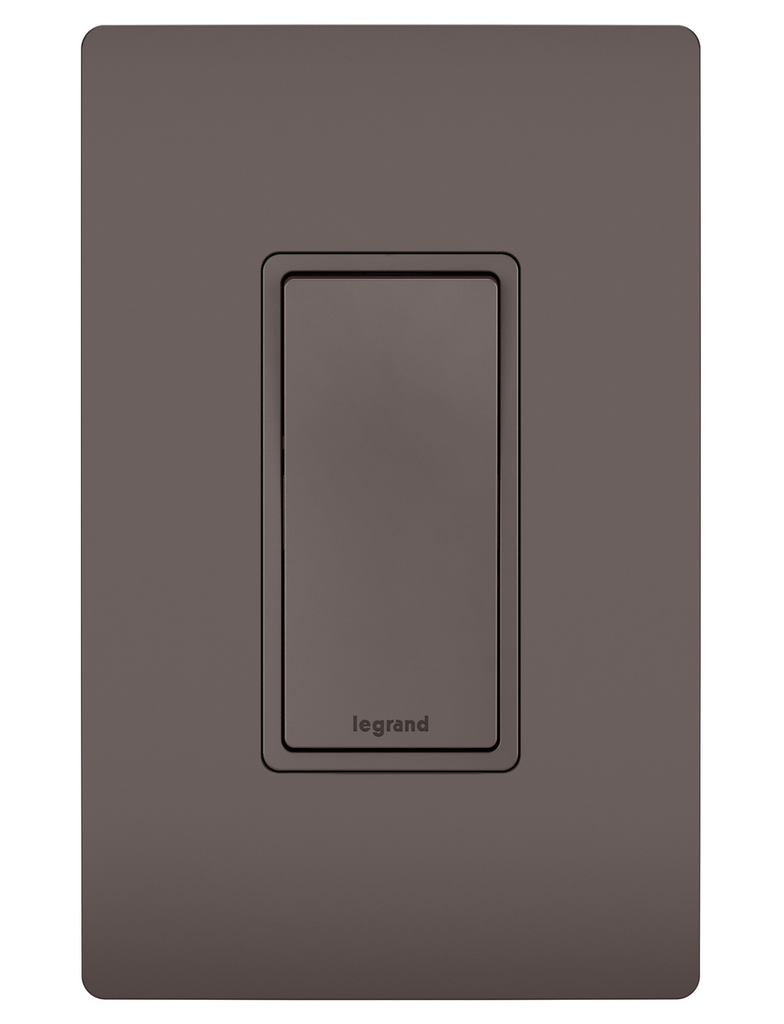

Pass & Seymour TM874 15 Amp 120/277 VAC 4-Way Brown Thermoplastic Rocker Decorator Switch

Manufacturer: Legrand / Pass & Seymour | Catalog # TM874 | North Coast Part # 422731

$15.61/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
16 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
For your largest or most open spaces, a radiant® 4-Way Switch enables control of a single light or fixture from three or more separate locations (working in conjunction with 3-Way Switches). Perfect for basements or multi-level rooms. Part of the radiant Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Actuator
Rocker/Button
Amperage
15 Amp
Applications
Residential/Commercial
Blade Dimensions
6.25 in x 2 in T
Material
Thermoplastic
Number of Gangs
1 Gang
Number of Poles
4 Pole
Orientation
Vertical
Size
6.25"
Style
Decorator
Terminal Type
Screw
Type
4-Way
Voltage
120/277 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
The Radiant

General Product Info

Color
Brown
GTiN
00785007845020
Product Series
TradeMaster,TradeMaster
Product UPC
78500784502

Dimensions

Depth
1.27 Foot
Height
4.19 Inch
Thickness
2"
Width
1.43 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • Push wire #14 AWG.
  • Smooth paddle action.
  • Narrow back body leaves more room for wires in the box.
  • ON/OFF swtiches conform to NEC: 430-104 requirements for kitchen and disposal units
  • High-impact resistant thermoplastic construction.
  • Easy-access green hex head ground screw.
  • External screw-pressure-plate back and side wired. Accepts #12 and #14 AWG.
  • Extra-long, through-body strap eliminates floating installations and imperfect applications.
  • Tri-drive ground, terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • Part of the all-new radiant: collection.
