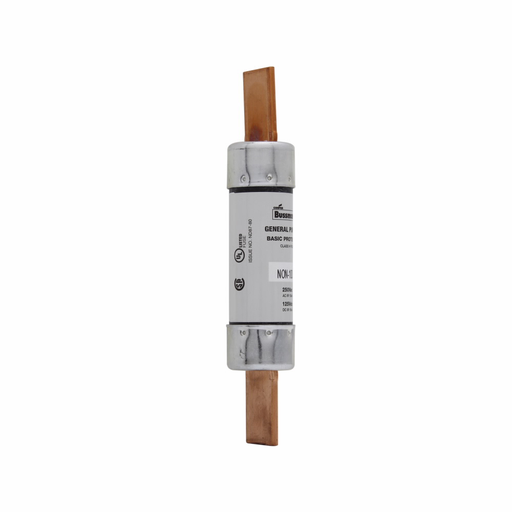

Product image for Bussmann NON-90 90amp General Purpose Non-Current-Limiting One-Time Fuse, Class K5/H, 250Vac/125Vdc
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Bussmann NON-90 90amp General Purpose Non-Current-Limiting One-Time Fuse, Class K5/H, 250Vac/125Vdc

Manufacturer: Cooper / Bussman | Catalog # NON-90 | North Coast Part # 42622
$62.87/ea
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Eaton Bussmann Series Class K5 fuse, NON, general purpose, non-current-limiting fuses, 90 A, one-time fuse, interrupting rating of 10 kA at 250 Vac and 10 kA at 125 Vdc

Technical Information

Amperage
90 Amp
Applications
Light Duty Circuit Locations
Connection Type
Blade
End Type
Blade
Interrupt Rating
10 kAIC at 250 Vac50 kAIC at 125 Vdc
Size
1.06 In Diameter X 5.88 In Length
Standard
CSA,E2186,UL
TC Connection
Rod To Blade
Type
Monitoring
Voltage
125 Volt

Manufacturer Information

Brand
Eaton
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712101677
Class
H
GTiN
00051712101677
Product UPC
05171210167
Weight
.3 lb

Dimensions

Height
5.88 Inch
Length
1.6 Inch
