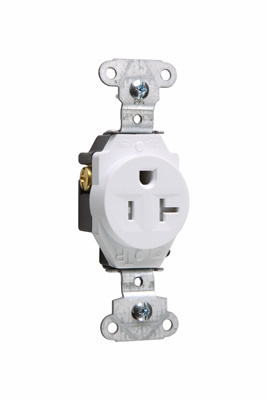

Product image for Pass & Seymour TR5351-W Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 20Amp 125Volt White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour TR5351-W Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 20Amp 125Volt White

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5351W | North Coast Part # 429577
$8.55/ea
Log in or register to view your price, purchase history, and more!
210 available

For Pick Up

at Auburn Opens Monday 4:00am PT
210 available

For Delivery

Order by Monday 4:00pm PT for delivery Tuesday
Not in local stock *
Check another branch
Specification Sheet Brochure
Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 20amp 125volt BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
4 AWG
Connection Type
Wire Ground
Grade
Commercial
Material
Thermoplastic
Mounting Type
Wall, Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.3 in
TC Connection
Wire Ground
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007241945
Color
White
Finish
Gloss
GTiN
00785007241945
Product UPC
78500724194
UNSPSC
39121406

Dimensions

Depth
1.19 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • AC receptacles available in 15 and 20A, 125V.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
