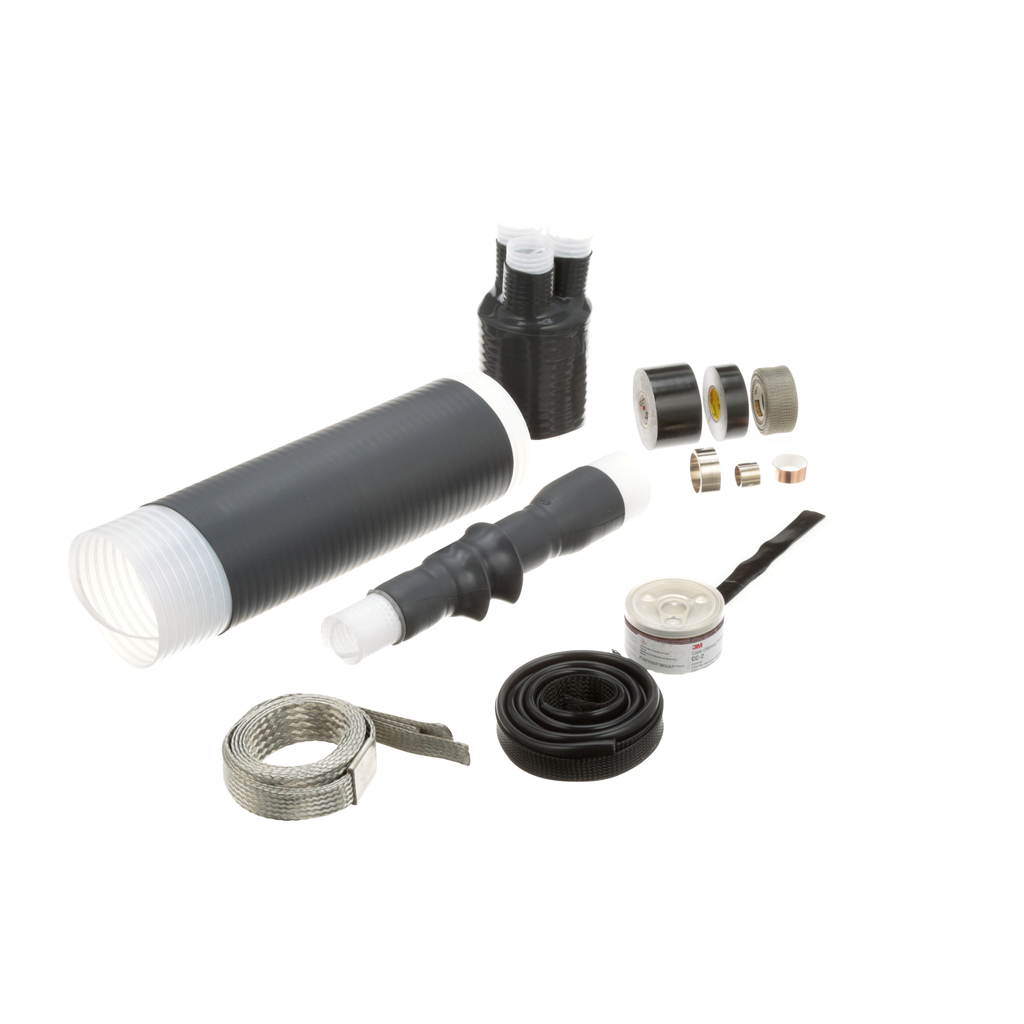

Product image for 3M 7622-S-2-3G Outdoor 3 Conductor Cables Termination Kit w/ Ground Wires
Image thumbnail 0
Image thumbnail 1
Email

3M 7622-S-2-3G Outdoor 3 Conductor Cables Termination Kit w/ Ground Wires

Manufacturer: 3M | Catalog # 7000132898 | North Coast Part # 429902
$2,272.16/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page MDM Safety Data Sheet
3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Technical Information

Applications
Outdoor
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG
Indoor Outdoor
Outdoor Skirted
Number of Conductors
3
Type
QT-III
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007436812
GTiN
00054007436812
Product Series
7600-S-3G
Product UPC
05400743681

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
