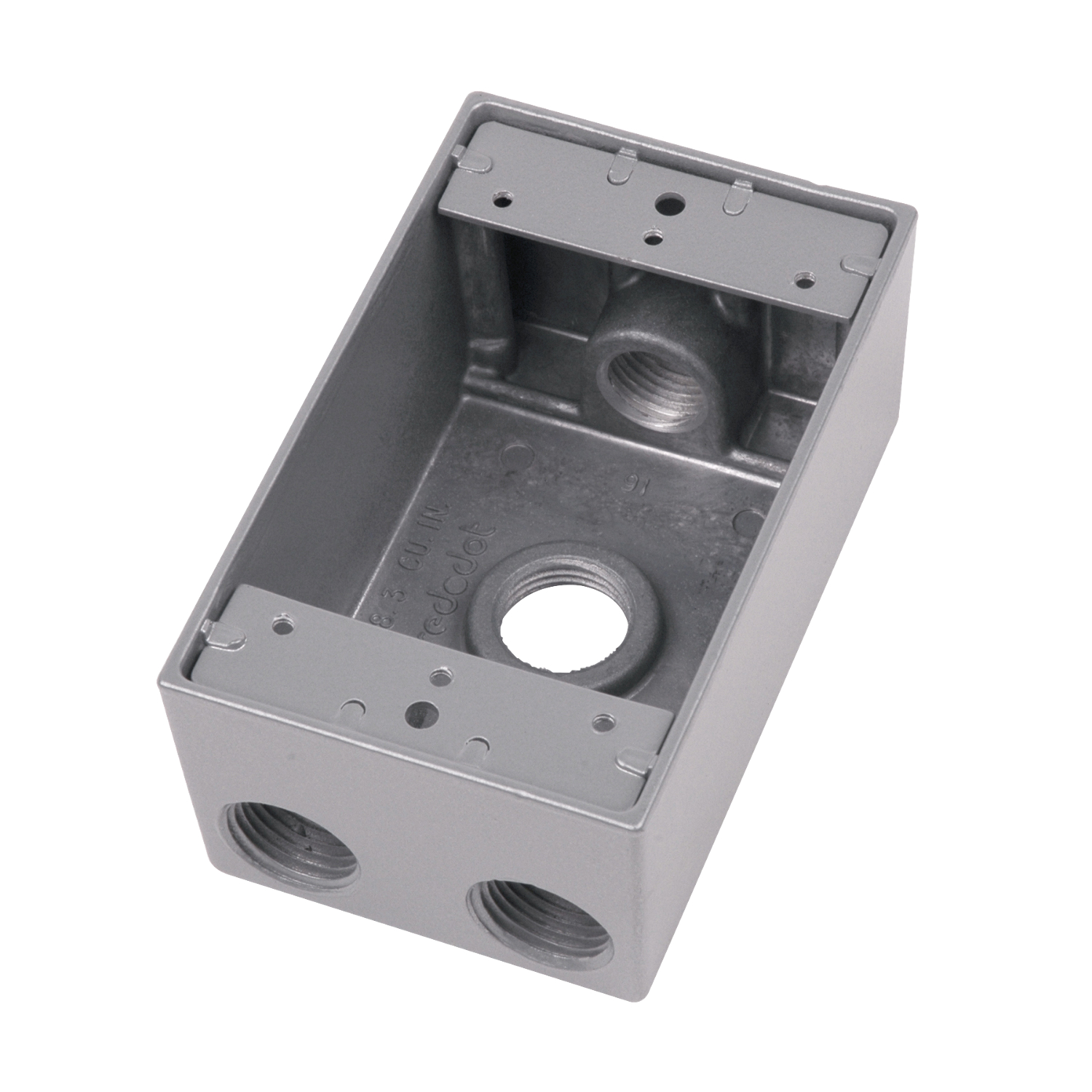

Red Dot DIH4-2-LM Silver Die-Cast Aluminum 4-Hole 1-Gang 3/4 Inch Weatherproof Box

Manufacturer: Thomas & Betts / Red Dot | Catalog # DIH4-2-LM | North Coast Part # 432351
$2,757.86/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Single Gang Universal Weatherproof Box, 17.3 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 4 Outlets, Two on Top, and One on Bottom and Back, with Mounting Lugs, Pack of 10

Technical Information

Applications
For Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Cable Entry
3/4 in
Material
Aluminum
Number of Gangs
1 Gang
Type
Weatherproof, 4-Outlet

Manufacturer Information

Brand
ABB
Sub Brand
Red Dot®

General Product Info

12-Digit UPC
042269810259
Color
Silver
Finish
Powder Coated
GTiN
00042269810259
Product UPC
04226981025

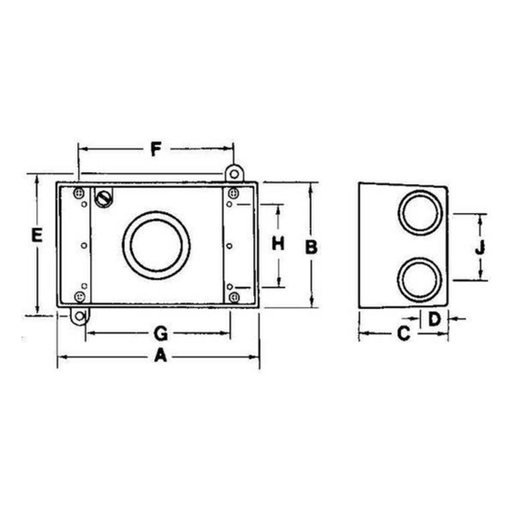

Dimensions

Depth
2 Inch
Height
6.8 Inch
Length
4-9/16 Inch
Width
2-13/16 in
Features
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Clear UL and cubic content markings speed approval by inspectors
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Clean cover edges provide good gasket sealing.
  • Convenient mounting lugs for a variety of mounting methods
  • Securely fastened mounting plates reduce costly call backs
  • Precision cast and machined surfaces permit safer wire pulling.
Application
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction box for branch conduits
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Notes
  • Rain tight when used with appropriate Red Dot covers.
Certifications
  • UL
