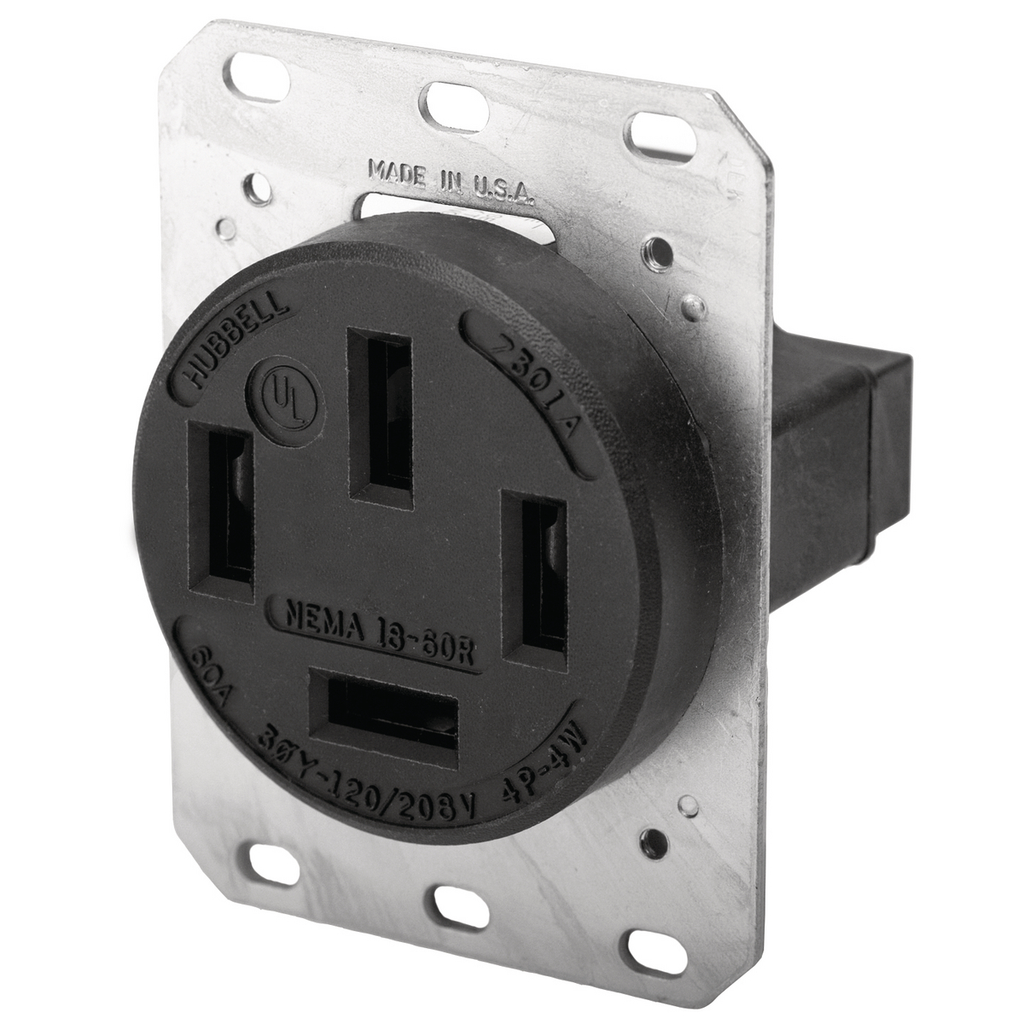

Hubbell HBL7301A 60 Amp 3-Phase 120/208 VAC 4-Pole 4-Wire NEMA 18-60R Black Straight Blade Receptacle

Manufacturer: Hubbell / Kellems | Catalog # HBL7301A | North Coast Part # 43339
$264.16/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Industrial Grade, 4- Pole 4-Wire Non-Grounding, 60A 3 Phase 120/208V AC, 18-60R, Black, Single Pack.

Technical Information

Amperage
60 Amp
Applications
Heavy Duty
Conductor Size
12-6 AWG
Connection Type
Back and Side Wired
Current
60 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Non-Grounding
Horsepower
7.5 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
18-60R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
TC Connection
Back & Side Wired
Type
Heavy Duty
Voltage
120 Volt
Wattage
12480 Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585015095
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585015095
Product UPC
78358501509
Weight
0.55 lb

Dimensions

Height
2.678 Inch
Length
3.28 Inch
Width
1.81 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Sequenced contacts assure protection
  • One piece design power and ground contacts
  • Standard
