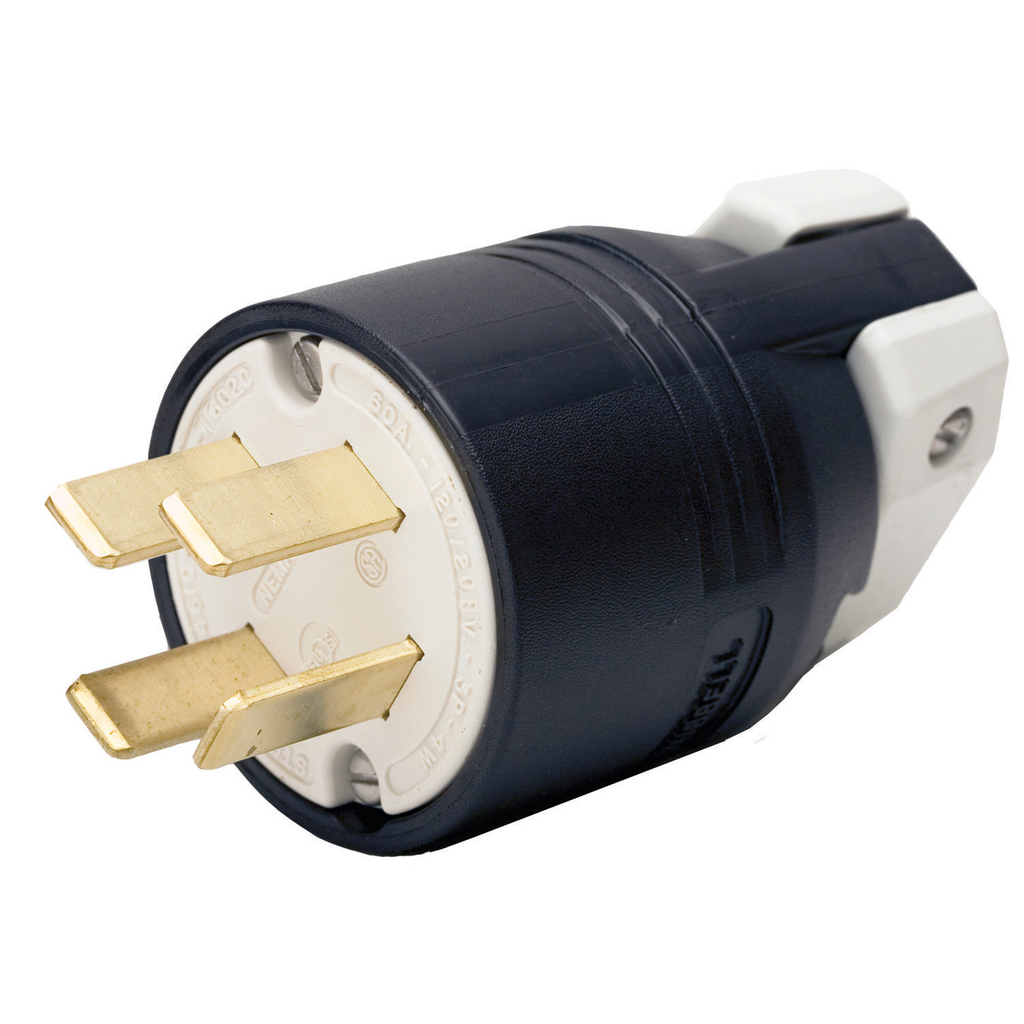

Product image for Hubbell HBL7303C 60 Amp 3-Phase 120/208 VAC 4-Pole 4-Wire NEMA 18-60P Black Nylon Straight Blade Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL7303C 60 Amp 3-Phase 120/208 VAC 4-Pole 4-Wire NEMA 18-60P Black Nylon Straight Blade Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL7303C | North Coast Part # 43457
$232.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 4-Pole 4-Wire Non- Grounding, 60A 3 Phase 120/208 V AC, 18-60R, Black, Single Pack.

Technical Information

Amperage
60 Amp
Applications
Industrial/Commercial
Conductor Size
12-4 AWG
Cord Type
All Portable
Current
60 Amp
Grounding
Non-Grounding
Horsepower
7.5 hp
Material
Composite
Mounting Type
Cord
NEMA
18-60P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E1706,UL
TC Connection
Terminal Screws
Type
Insulgrip
Voltage
120/208 Volt
Wattage
12480 Watt
Wire Count
4
Wire Size
12-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585015385
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585015385
Product UPC
78358501538
Weight
0.85 lb

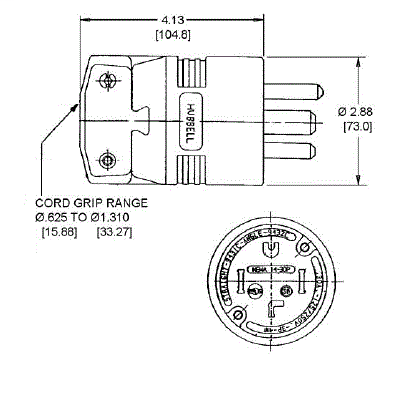

Dimensions

Height
2.88 Inch
Length
4.13 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Catalog number, ratings and certifications molded in face
  • Gripping ribs provide secure gripping area
  • Supertough nylon housing
