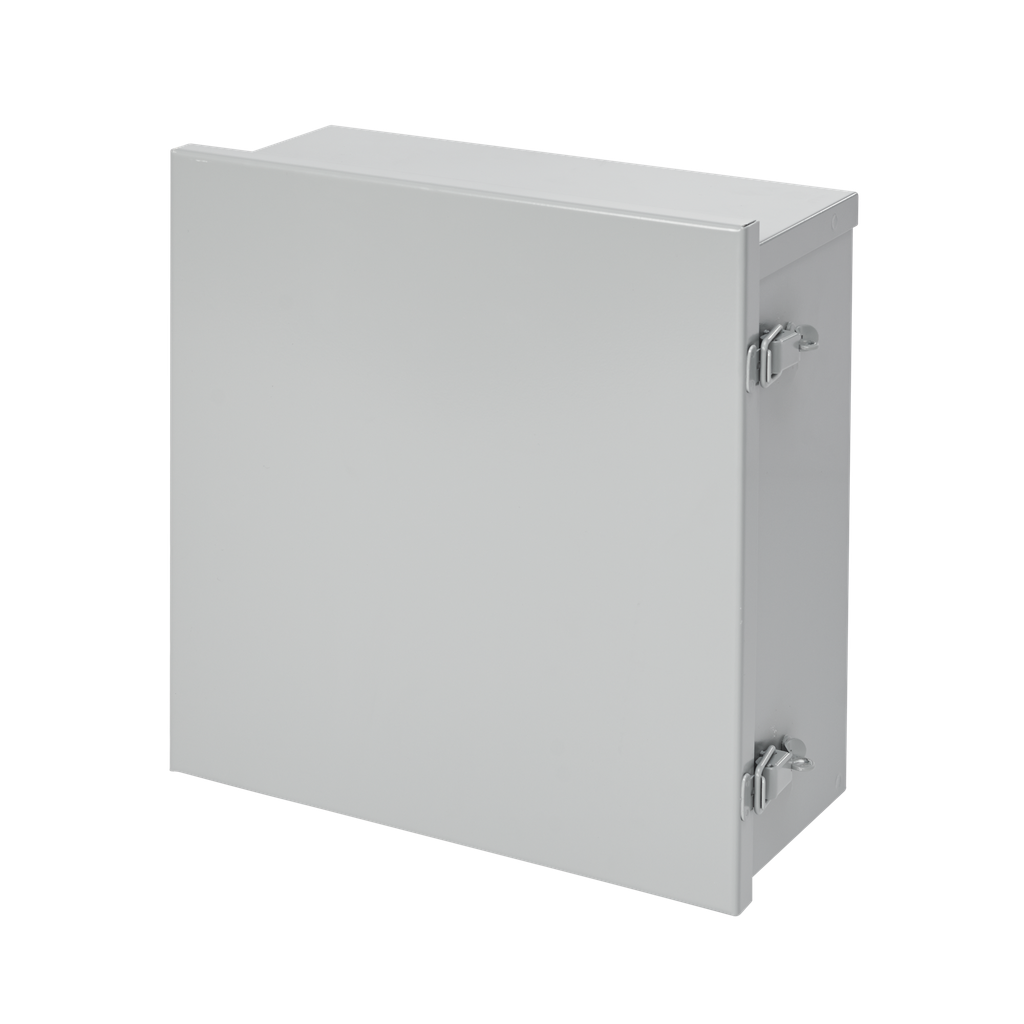

Product image for Hoffman A12R106HCLO Drip-Shield Hinged Lift-Off Cover Type 3R, 12" x 10" x 6", Gray, Steel
Email

Hoffman A12R106HCLO Drip-Shield Hinged Lift-Off Cover Type 3R, 12" x 10" x 6", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A12R106HCLO | North Coast Part # 43550
$165.44/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Drip-Shield Hinged Lift-Off Cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor and other applications subject to rain, sleet, snow or dripping water.

Technical Information

Applications
Controls and Drives; Power Distribution
Body Gauge
16
Body Thickness
1.52 mm
Color Coding
ANSI 61
Enclosure
3R
IP Rating
32
Material
Steel
Size
12.00x10.00x6.00 in
Standard
CSA, File 42184: Type 3R,CUL Listed Per CSA C22.2 No 94; Type 3R File No. E27567,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27567
Type
Wall-Mounted / Pad-Mounted Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510388904
Color
Gray
Finish
Galvanized
GTiN
00783510388904
Product UPC
78351038890
Weight
11 lb

Dimensions

Depth
6 Inch
Height
12 Inch
Length
11-1/2 Inch
Width
10 in
Features
  • Drip-shield top and seam-free sides, front and back
  • Galvanized steel lift-off hinges with stainless steel pins
  • Provisions for padlocking on each draw pull catch
  • Embossed mounting holes on back of enclosure
  • Gasketing along top of door
  • No knockouts
  • Quick-release door latches
  • Enclosures are finished with paint over plated surfaces
