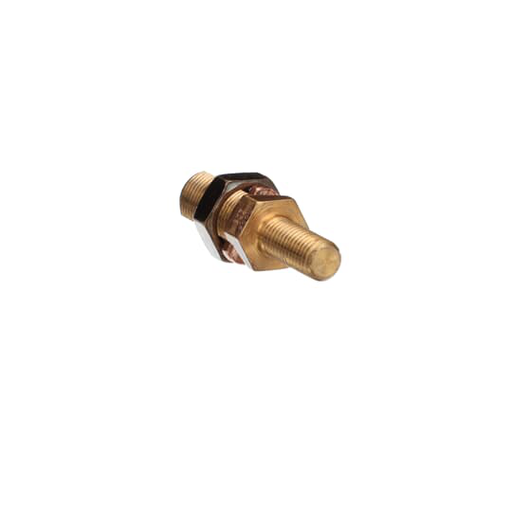

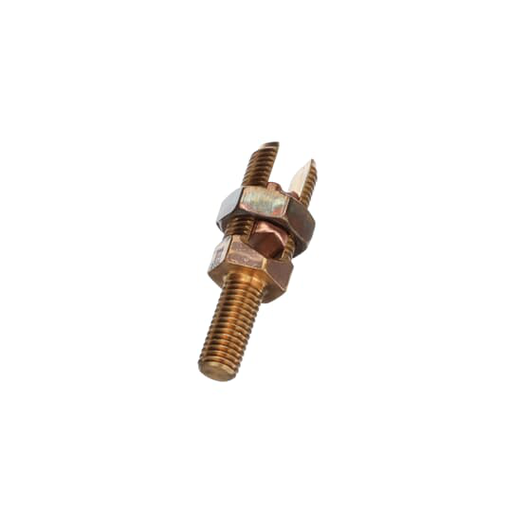

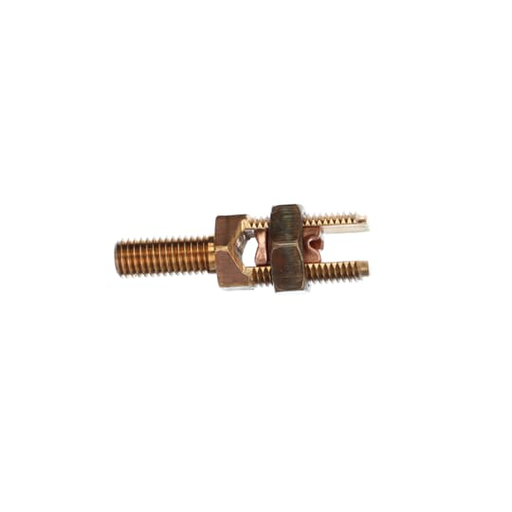

Blackburn SP6DL Double Service Post Connector

Manufacturer: Thomas & Betts / Blackburn | Catalog # SP6DL | North Coast Part # 44707
$11,716.28/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Long Stud Double Service Post Connectors for Conductors 2/0 - 2 Stranded, 2 Solid, Stud Size 1/2 - 13 x 11 1/4

Technical Information

Applications
For Copper to Copper Connections, for Grounding of Steel Structures or Transformers Using One or Two Cables, for Tapping One or Two Cables from Bus Bar
Conductor Material
Bronze
Conductor Size
2-2/0 AWG
Insulated?
No
Material
Bronze
Standard
UL E9809
Type
Mechanical Grounding, Double

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786805334
GTiN
00783786805334
Product UPC
78378680533
Features
  • Hex design bolts are machined from high-conductivity bronze alloy.
  • Nuts and pressure bars are cold-formed from high-strength copper or copper alloy.
Application
  • For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus bar.
