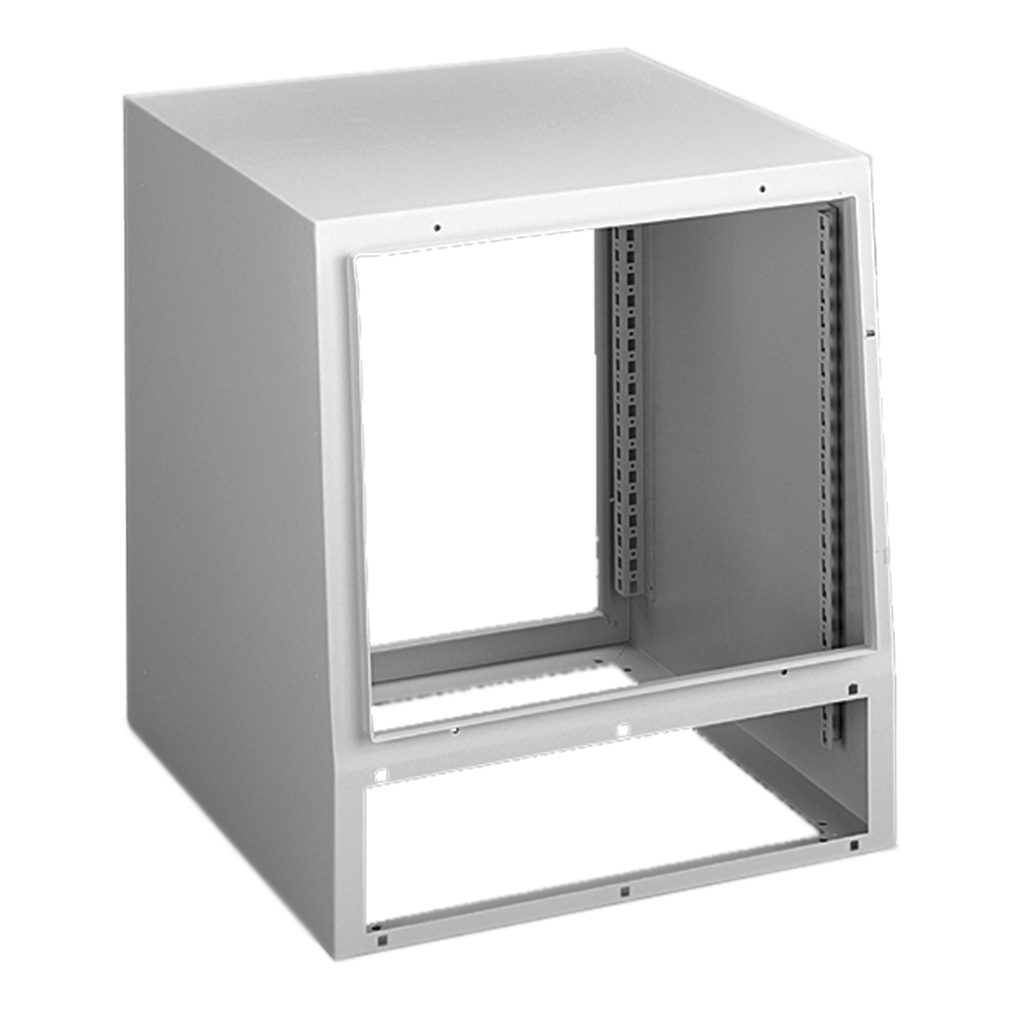

Product image for Hoffman PST7A86 Sloped Front with Accessory Opening, 700x 800x 600mm, Lt Gray, Steel
Email

Hoffman PST7A86 Sloped Front with Accessory Opening, 700x 800x 600mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PST7A86 | North Coast Part # 45192
$4,265.71/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure with Accessory Opening foundation is extremely adaptable for nearly any application. Upper front opening for door/cover options has a 5-degree slope. Lower section is suitable for keyboard or other front options. Rear opening(s) for door and cover options. The internal mounting hole pattern accommodates most ProLine internal accessories. Optional ProLine Frame Shelf or ProLine Grid System provides a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm ProLine frame.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
700x800x600mm
Type
HMI Enclosure Systems

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510365493
Color
Light Gray
Finish
Powder Coated
GTiN
00783510365493
Product UPC
78351036549
Weight
72.8 lb

Dimensions

Depth
23.62 Inch
Height
27.56 Inch
Length
34 Inch
Thickness
1.9 mm
Width
26.00 in
Features
  • Enclosure is available in two heights
  • The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
  • A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
