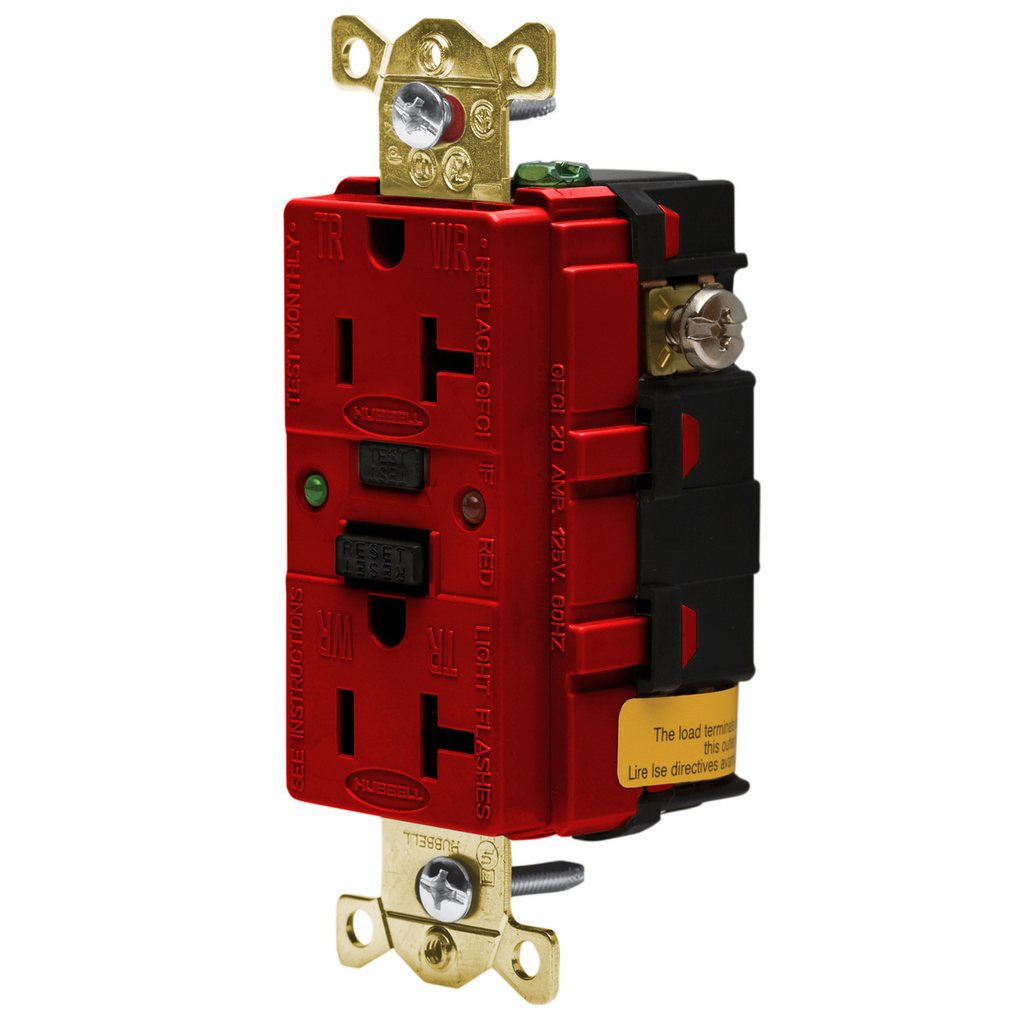

Hubbell GFR5362SGR20A/125V INDL. TAMPER ST GFCI, RED

Manufacturer: Hubbell / Kellems | Catalog # GFR5362SGR | North Coast Part # 453306
$176.43/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Power Protection Products, Receptacles, GFCI, Tamper and Weather Resistant, Industrial Grade, Self Test, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Frequency
60 Hz
Grade
Industrial
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-30 To 150 degrees F
Size
Standard Sized
Standard
UL
Style
Standard
TC Connection
Back and Side Wired Terminal Screws
Type
Decorator, Tamper-Resistant, Self-Test
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585440989
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585440989
Product UPC
78358544098
Weight
0.4 lb

Dimensions

Width
2.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • 10kA Short Circuit Current Rating
  • Limits improper access to energized contacts
  • Self Test Feature, Self Grounding
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
Industry Standard(s)
  • Fed.Spec
  • Meets All NEC® Requirements
