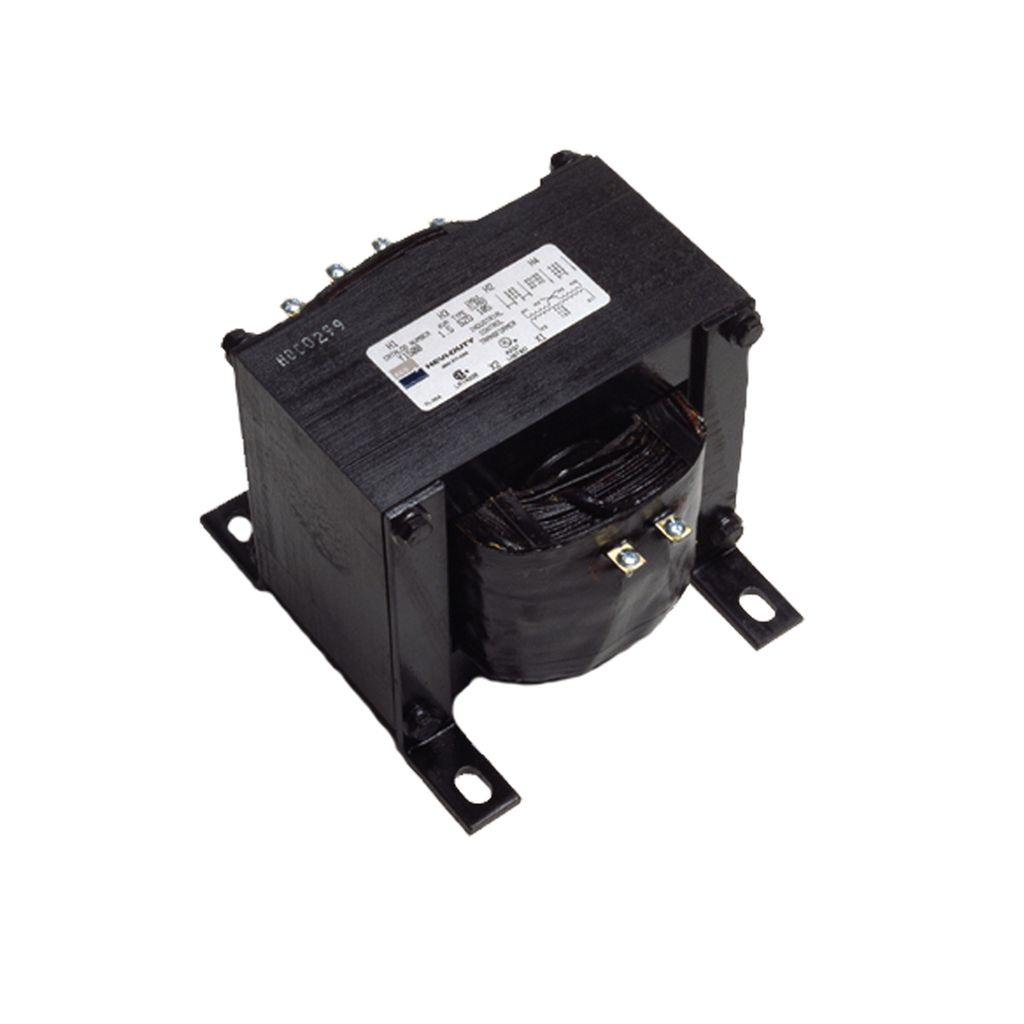

Product image for SolaHD Y2000 2 kVa 240 x 480 Volt Primary 120 Volt Secondary Industrial Control Transformer
Image thumbnail 0
Image thumbnail 1
Email

SolaHD Y2000 2 kVa 240 x 480 Volt Primary 120 Volt Secondary Industrial Control Transformer

Manufacturer: Hevi-Duty | Catalog # Y2000 | North Coast Part # 45560
$885.30/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure Product Catalog Page
SBE Copper Wound Open Style Design Transformers with interleaved copper windings reduce I.R losses and maximize efficiency. They meet or exceed the electrical requirements of NEMA, ANSI, NMTBA and JIC. These higher power capacity transformers provide voltage regulation in excess of NEMA recommendations without exceeding +55.C rise.

Technical Information

Applications
Best choice when 80% or more of the load components are electromagnetic
Frequency
50/60 Hz
Material
Copper
Number of Phases
1 Phase
Primary Voltage
240/480 VAC
Secondary Voltage
120 VAC
Standard
CSA,E2186,UL
Temperature Rating
55 degrees C Rise
Type
Industrial
Wattage
1500 Watt

Manufacturer Information

Brand
Emerson Electric Co.
Sub Brand
SolaHD™

General Product Info

12-Digit UPC
783472561278
GTiN
00783472561278
Product UPC
78347256127

Dimensions

Height
6-1/4 Inch
Length
8-3/4 Inch
Width
6.75 in

Certifications and Compliance

Buy American Compliant
Y
Features
  • UL, CSA, RoHS
  • Interleaved copper windings reduce I²R losses and maximize efficiency
  • Ratings 60 Hz unless noted 50/60 Hz
  • Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC
  • +55°C rise
  • +105°C insulation system
  • High quality silicon steel core
