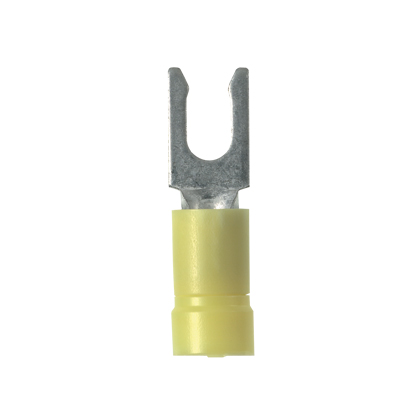

Product image for Panduit PV10-10LF-L Vinyl Insulated Locking Fork Terminal - #12-10, #10bolt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit PV10-10LF-L Vinyl Insulated Locking Fork Terminal - #12-10, #10bolt

Manufacturer: Panduit | Catalog # PV10-10LF-L | North Coast Part # 45566
$194.64/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The PV10-10LF-L Pan-Term® Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.4 in
Barrel Type
Funnel
Color Coding
Yellow
Conductor Size
10 AWG
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
10 in
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.34 in
Type
Interlocking Armored, Riser
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983808168
Color
Black on Yellow
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983808168
Product UPC
07498380816

Dimensions

Outer Diameter
0.23 in
Overall Length
1.04 in
Width
8.64 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
