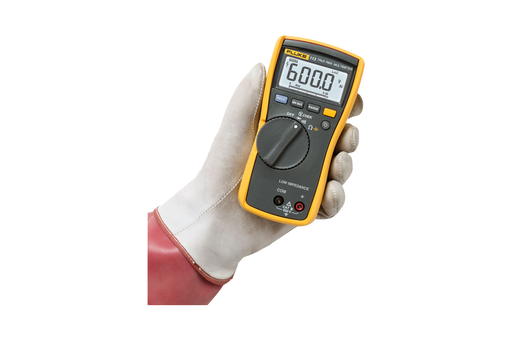

Fluke FLUKE-113 600 Volt Utility Multimeter

Manufacturer: Fluke | Catalog # FLUKE-113 | North Coast Part # 457596
$228.23/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
1-rms Digital Multimeter designed for basic electrical tests. The Fluke 113 Digital Multimeter gives users the means to quickly and easily do basic meter set and reconnect testing. This meter is simple-to-use and has the features needed to repair most electrical problems. The Fluke 113 has significant improvements over other digital multimeters available on the market, including Fluke model 7-600. Using the Fluke VCHEK™ LoZ low impedance measurement function, users can simultaneously test for voltage or continuity. The Min/Max function lets you record signal fluctuations. The Fluke 113 can perform diode tests, and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight, and a much larger display that.s easier to view, this meter is a must have for every toolbox.

Technical Information

Accuracy
DC, 45 to 500 Hz: 2.0% + 3; 500 Hz to 1 kHz: 4.0% + 3 Hz
Applications
True RMS Utility Multimeter designed for basic electrical tests
Battery Type
9V Alkaline,ANSI 1604A / IEC 6F22
Enclosure
Hard plastic
Enclosure Material
Hard Plastic
Operating Temperature
-10 To 50 degrees C
Resistance
600.0 O / 6.000 kO / 60.00 kO Ohm
Storage Temperature
-22 To 140 degrees F
Temperature Rating
-10 to 50 C
Type
Digital Multimeter
Voltage
600 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969434522
GTiN
00095969434522
Product UPC
09596943452
Weight
13.0 oz
Key Features
  • VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity*
  • True RMS for accurate AC measurements on non-linear loads
  • A large backlit display allows for easy visibility in low-lit areas
  • Record signal fluctuations using the Min/Max function
  • Diode test for testing general-purpose germanium, silicon, and power diodes
  • Integral holster with probe holders for easy storage
  • Auto and Manual ranging for added user functionality
  • Meets Measurement Category CAT III 600 V and Category IV 300 V standards for a higher level of safety
  • The optional TPAK magnetic hanger allows the user hands-free flexibility
Product Overview
  • The Fluke 113 Digital Multimeter gives users the means to quickly and easily do basic meter set and reconnect testing. This meter is simple-to-use and has the features needed to repair most electrical problems. The Fluke 113 has significant improvements over other digital multimeters available on the market, including Fluke model 7-600. Using the Fluke VCHEK™ LoZ low impedance measurement function, users can simultaneously test for voltage or continuity. LoZ low impedance measurements also block ghost voltages induced by nearby conductors. *Be advised that LoZ low impedance measurements present a low load to a circuit protected by an RCD, which can cause the RCD to trip. The Min/Max function lets you record signal fluctuations. The Fluke 113 can perform diode tests, and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight, and a much larger display thats easier to view, this meter is a must have for every toolbox.
Additional Features
  • 1. All VChek voltage ranges are specified from 60 counts to 100% of range. Because inputs below 60 counts are not specified, it is possible and normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together.2. Crest factor of ? 3 at 4000 counts, decreasing linearly to 1.5 at full scale.3. Minimum measureable input in VCHEK autorange is 3 VDC. For measurements below 3 VDC, push Range button twice to get to 6 VDC manual range.4. After measuring voltage, a wait time of 1 minute is required to maintain accuracy of ohms, capacitance, diode test, and continuity.
