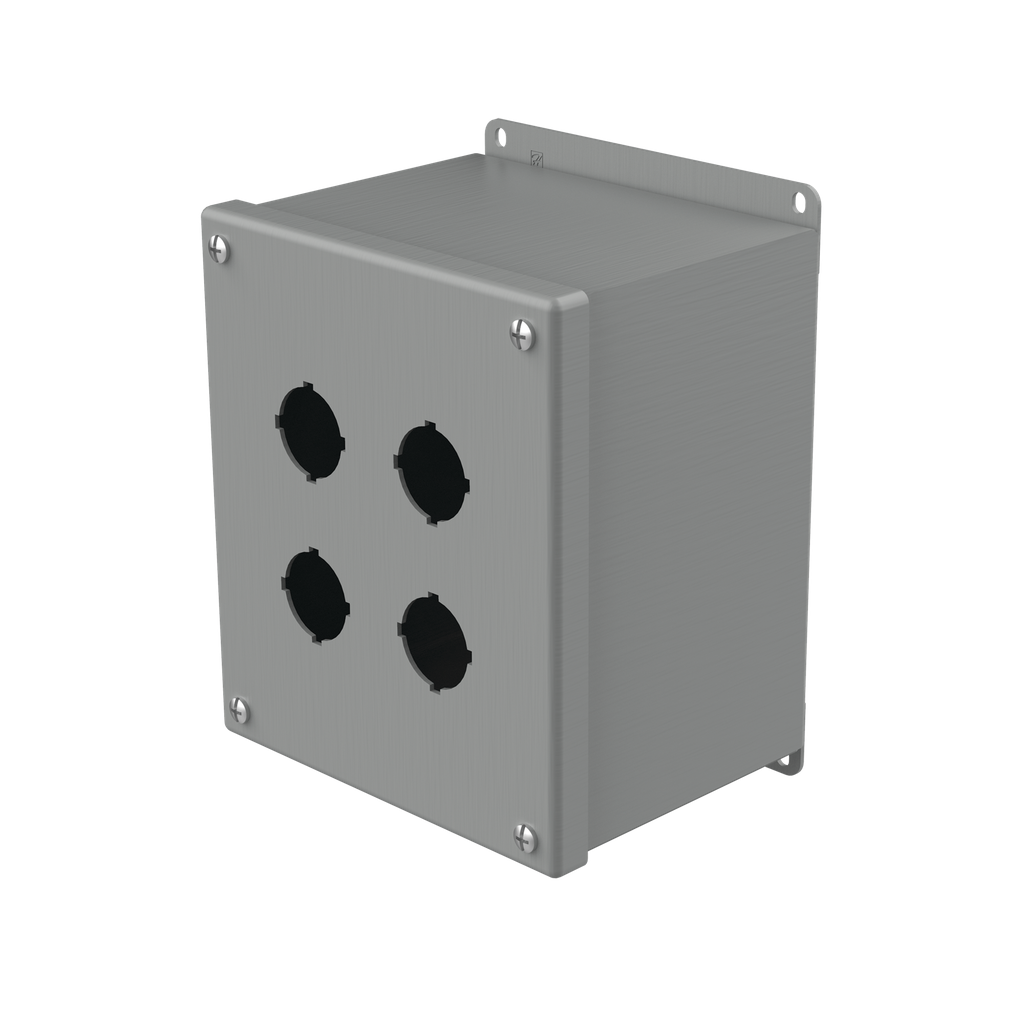

Product image for Hoffman E4SPBX Extra-Deep Pushbutton Enclosures, Type 12, 4PB x 30.5mm, Gray, Steel
Email

Hoffman E4SPBX Extra-Deep Pushbutton Enclosures, Type 12, 4PB x 30.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E4SPBX | North Coast Part # 46005
$273.75/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Extra-Deep Pushbutton Enclosures, Type 12, 4PB x 30.5mm, Square, Gray, Steel

Technical Information

Applications
For Push Buttons and Switches
Color Coding
ANSI 61
Material
Steel
Number of Holes
4 Hole
Size
4PB x 30.5mm
Type
4-Hole, Extra Deep

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510581602
Color
Gray
Finish
Powder Coated
GTiN
00783510581602
Product UPC
78351058160
Used With
30.5 mm Push Button
Weight
5 lb

Dimensions

Depth
4-3/4 Inch
Height
7-1/4 Inch
Length
8.4 Inch
Thickness
1.9 mm
Width
6.25 in
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
