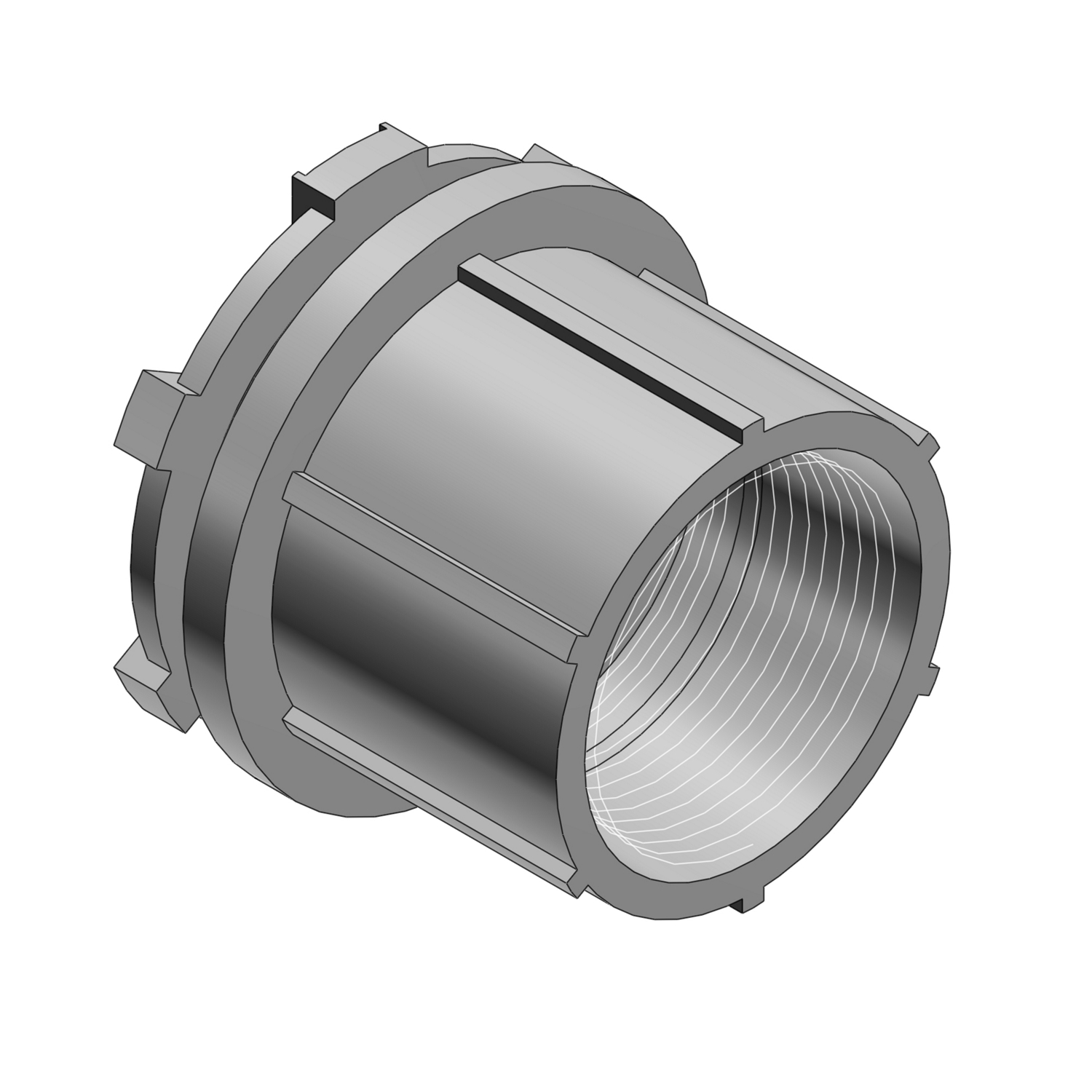

Thomas & Betts HT7 2-1/2 Inch Die-Cast Aluminum Conduit Hub

Manufacturer: Thomas & Betts / Red Dot | Catalog # HT7 | North Coast Part # 46034
$52.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Aluminum, Conduit Hub with Insulated Throat Hub Size 2-1/2 Inch

Technical Information

Applications
Hubs Provide Raintight Connections Between Junction Boxes or Between a Junction Box and Conduit System While Maintaining Ground Continuity
Connection Type
NPT
Material
Aluminum
Size
2-1/2 in
Standard
CSA,UL E28720
Trade Size
2-1/2 Inch
Type
Chase Conduit Hubs

Manufacturer Information

Brand
ABB
Sub Brand
Chase®

General Product Info

12-Digit UPC
042269492004
Color
Aluminum
Finish
Lacquer
GTiN
00042269492004
Product UPC
04226949200
Used With
Rigid/IMC Conduit
Features
  • Locking nipple has tightening lugs on two planes for easier assembly in hard to reach field conditions.
  • Chase design provides maximum space for wiring in the box, locking nipple sits flush in the enclosure.
  • Plastic insulated throat, precision cast and machined surfaces permit safer wire pulling.
  • Knurled inner face of locking nipple provides 360 degrees of locking and bites through box wall to ensure grounding.
  • Captive O-ring fits snugly in groove preventing loss and fumbling with parts.
Application
  • Hubs provide raintight connections between junction boxes or between a junction box and conduit system while maintaining ground continuity.
  • Suitable for use where the system is normally hosed down (NEMA 4) for cleaning.
