Hubbell HBL4570-C 15A 250V Twist-Lock INSULGRIP Black Nylon Plug, Straight

Manufacturer: Hubbell / Kellems | Catalog # HBL4570C | North Coast Part # 46072
$43.22/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Pick Up

at Auburn Closes 4:00pm PT
4 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual

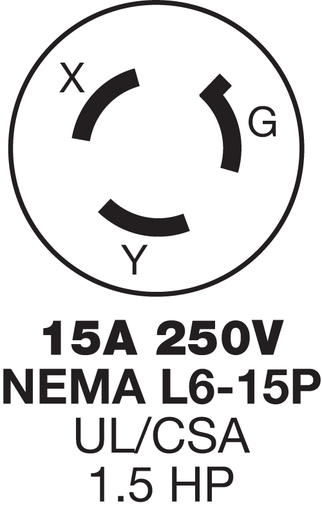

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15P, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial Application
Conductor Size
14-12 AWG
Cord Type
Portable
Current
15 Amp
Grounding
Yes
Horsepower
1.5 hp
Material
Composite
Mounting Type
Surface
NEMA
L6-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Standard Sized
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585170008
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585170008
Product UPC
78358517000
Weight
0.15 lb

Dimensions

Height
1.97 Inch
Length
1.53 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip thats impact and chemical resistant
  • Standard Product
