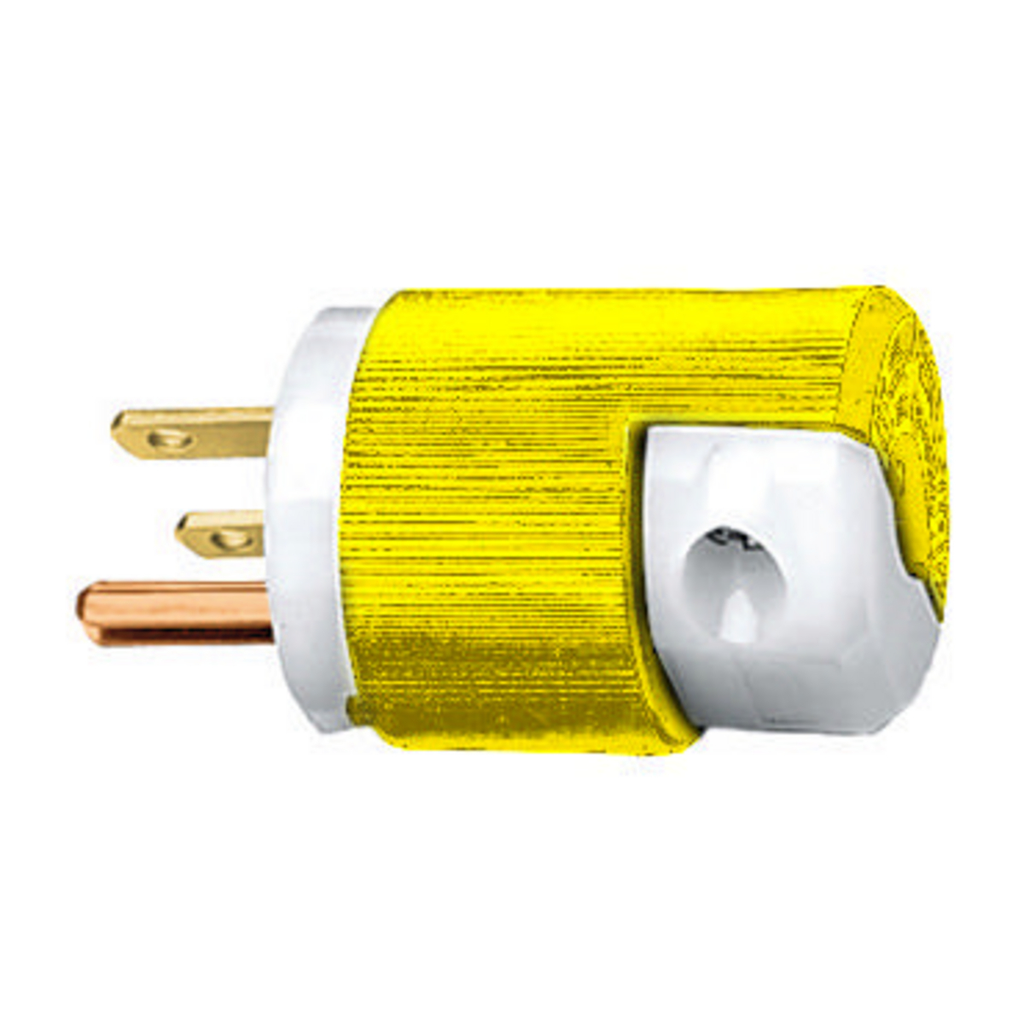

Product image for Hubbell HBL56CM66C Marine Plug, 15A 250V, 6-15P, YL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL56CM66C Marine Plug, 15A 250V, 6-15P, YL

Manufacturer: Hubbell / Kellems | Catalog # HBL56CM66C | North Coast Part # 462622
$55.05/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 250V, 6-15P, Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Marine Wiring Devices
Conductor Size
18-10 AWG
Cord Type
All Portable
Current
15 Amp
Horsepower
1.5 hp
Material
Composite
NEMA
6-15P
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Corrosion Resistant
TC Connection
Terminal Screws
Type
Insulgrip
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585013398
Color
Yellow
Environmental Conditions
Ribbed Nylon Housing Is Impact and Chemical Resistant
GTiN
00783585013398
Product Series
Insulgrip
Product UPC
78358501339
Weight
0.15 lb

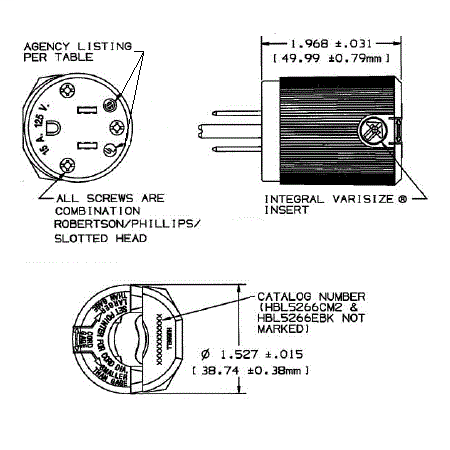

Dimensions

Height
1.53 Inch
Length
1.97 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
