ABB RAS18-6FLX HEAT-SHR LKG FORK TE

Manufacturer: Thomas & Betts | Catalog # RAS18-6FLX | North Coast Part # 46306
$433.86/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

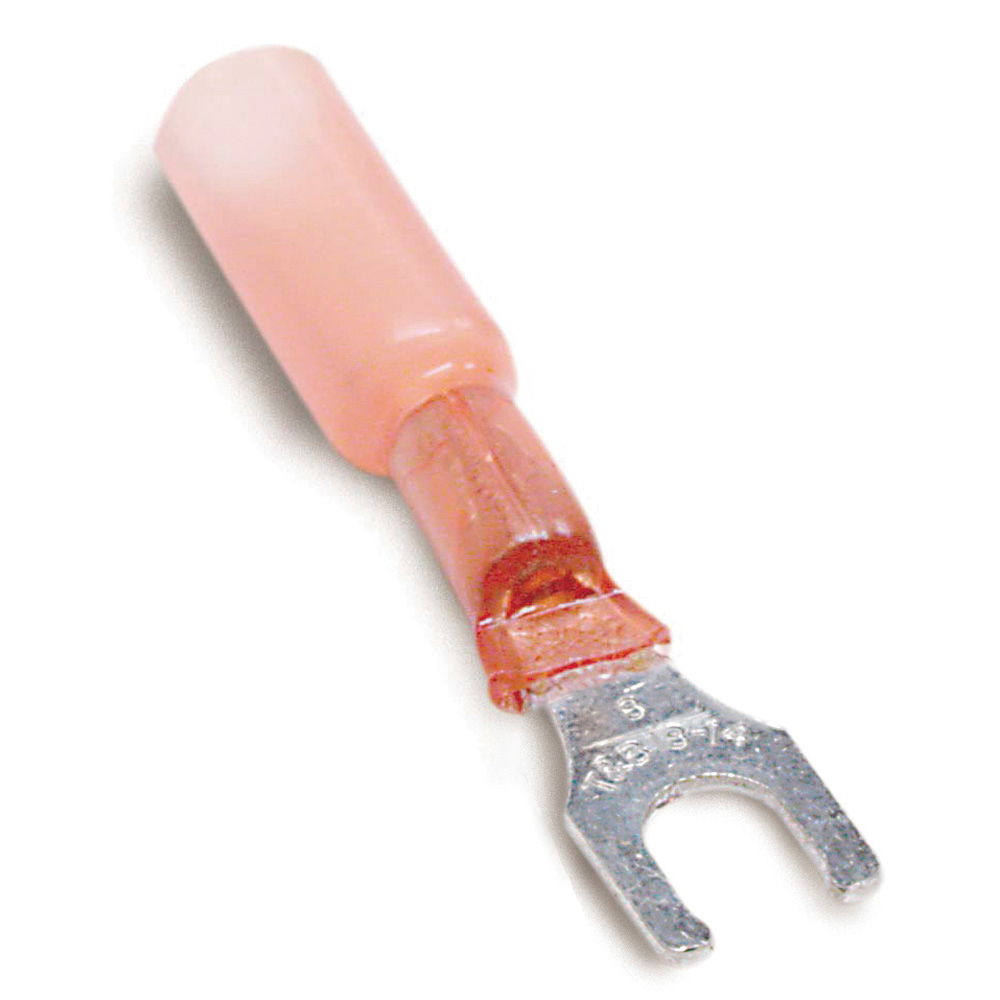

Heat Shrinkable Locking Fork Terminal, Length 1.350 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-18 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RAS
Type
Heat Shrinkable, Locking
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210873602
Color
Red
Finish
Tin Plated
GTiN
05414363158103
Product UPC
78621087360

Dimensions

Height
3 Inch
Length
1.35 Inch
Width
1.3 in
Notes
  • Not available on Mylar Tape.
Certifications
  • CSA
  • UL
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
