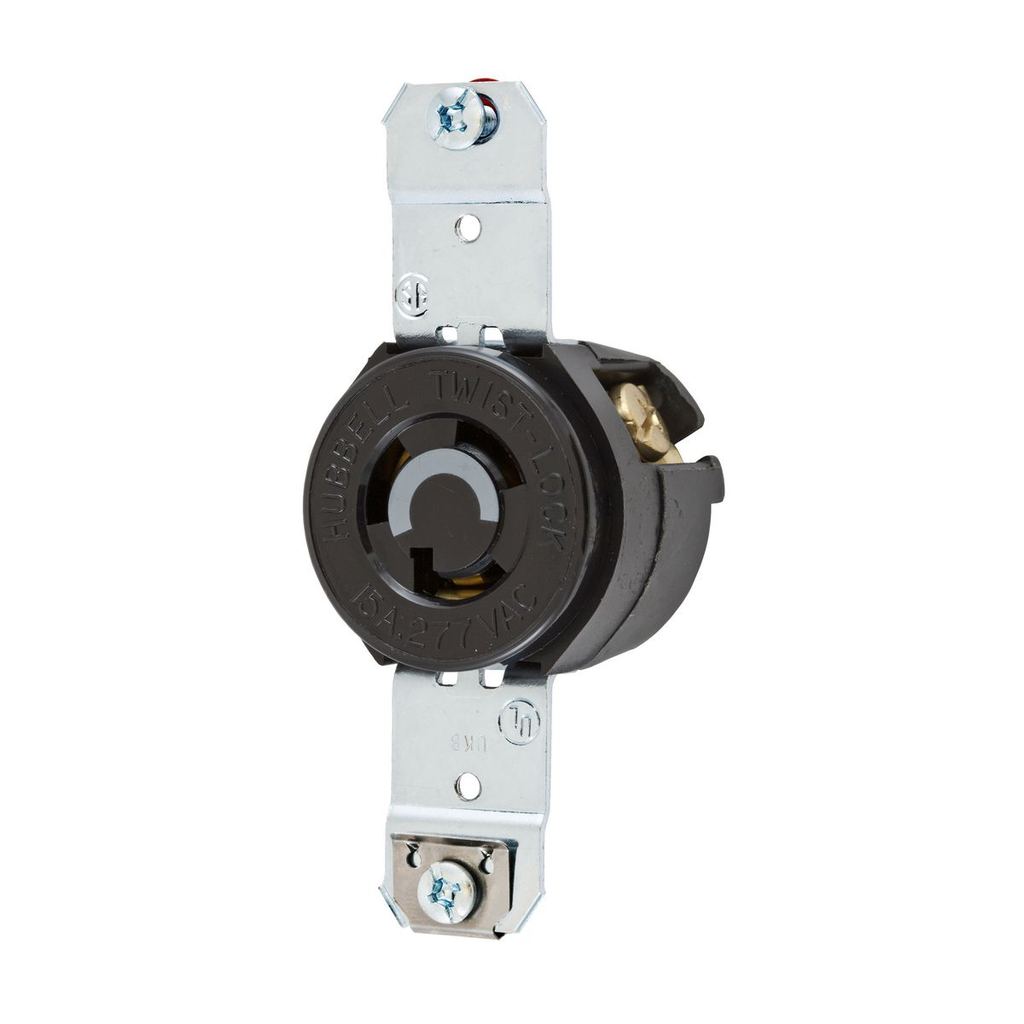

Product image for Hubbell HBL4760C Locking SGL Receptacle, 15A 277V, L7-15R, BR, MOD
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL4760C Locking SGL Receptacle, 15A 277V, L7-15R, BR, MOD

Manufacturer: Hubbell / Kellems | Catalog # HBL4760C | North Coast Part # 466867
$61.52/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, Black Nylon face.

Technical Information

Amperage
15 Amp
Base Material
RTP
Conductor Size
18-10 AWG
Current
15 Amp
Face Material
RTP
Horsepower
2 hp
Material
Thermoplastic
NEMA
L7-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
CSA C22.2 No.42,Fed. Spec. W-C-596,UL 498
Type
Receptacle
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585093345
Color
Black,Brown
GTiN
00783585093345
Product UPC
78358509334
Weight
0.20 lb

Dimensions

Height
1.27 Inch
Length
3.28 Inch
Width
1.500 in

Certifications and Compliance

Country of Origin
USA
Features
  • Reinforced thermoplastic construction
  • Single piece, all brass contacts
  • All terminals are back and side wired
  • Brass mounting strap with stainless steel grounding clip
  • Less Ears and Mounting Screws, Terminals Backed Out
