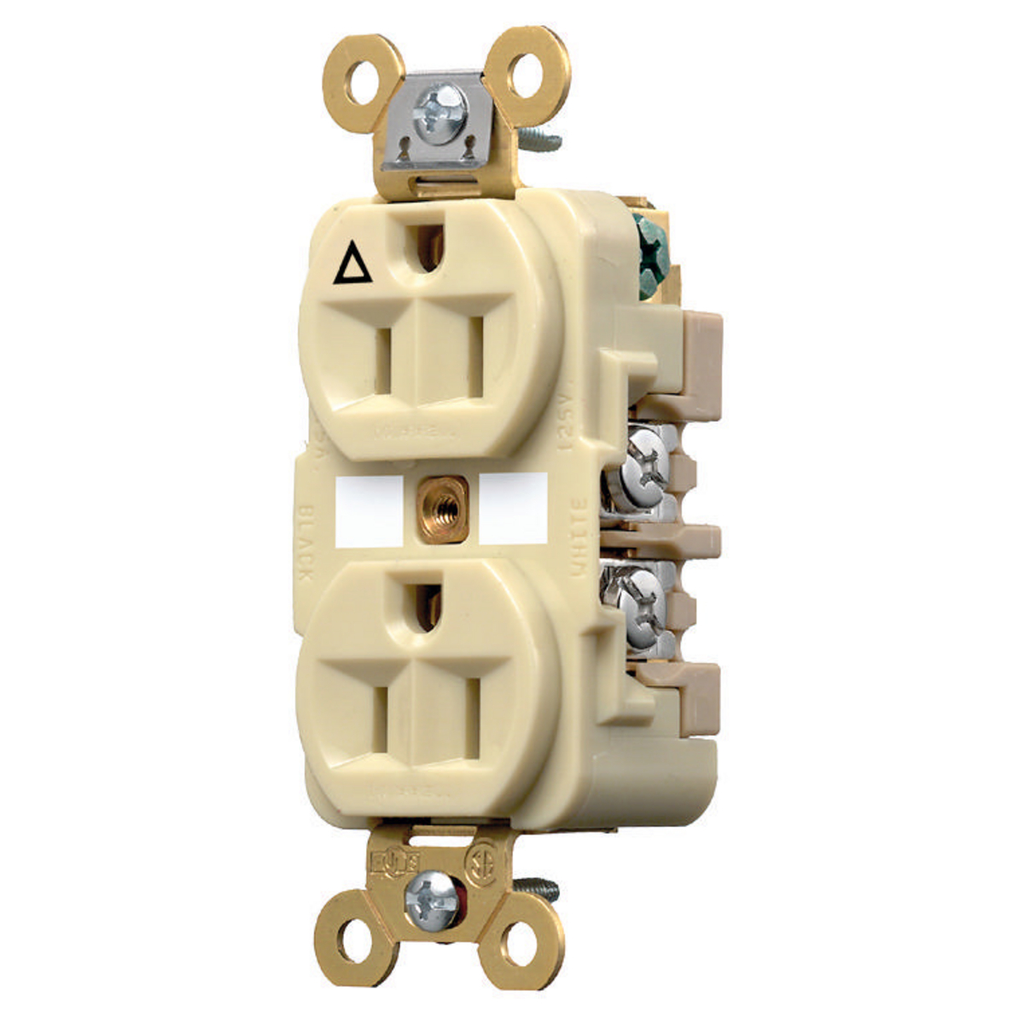

Product image for Hubbell IG5262I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Isolated Ground Straight Blade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Hubbell IG5262I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Isolated Ground Straight Blade Duplex Receptacle

Manufacturer: Hubbell / Kellems | Catalog # IG5262I | North Coast Part # 46850
$56.66/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, Isolated ground, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grounding
Isolated Ground
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585756547
Color
Ivory
Environmental Conditions
Indoor Only
GTiN
00783585756547
Product Series
Heavy Duty
Product UPC
78358575654
Weight
0.25 lb

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Slender compact design
  • Finder Groove Face
  • Isolated Ground
