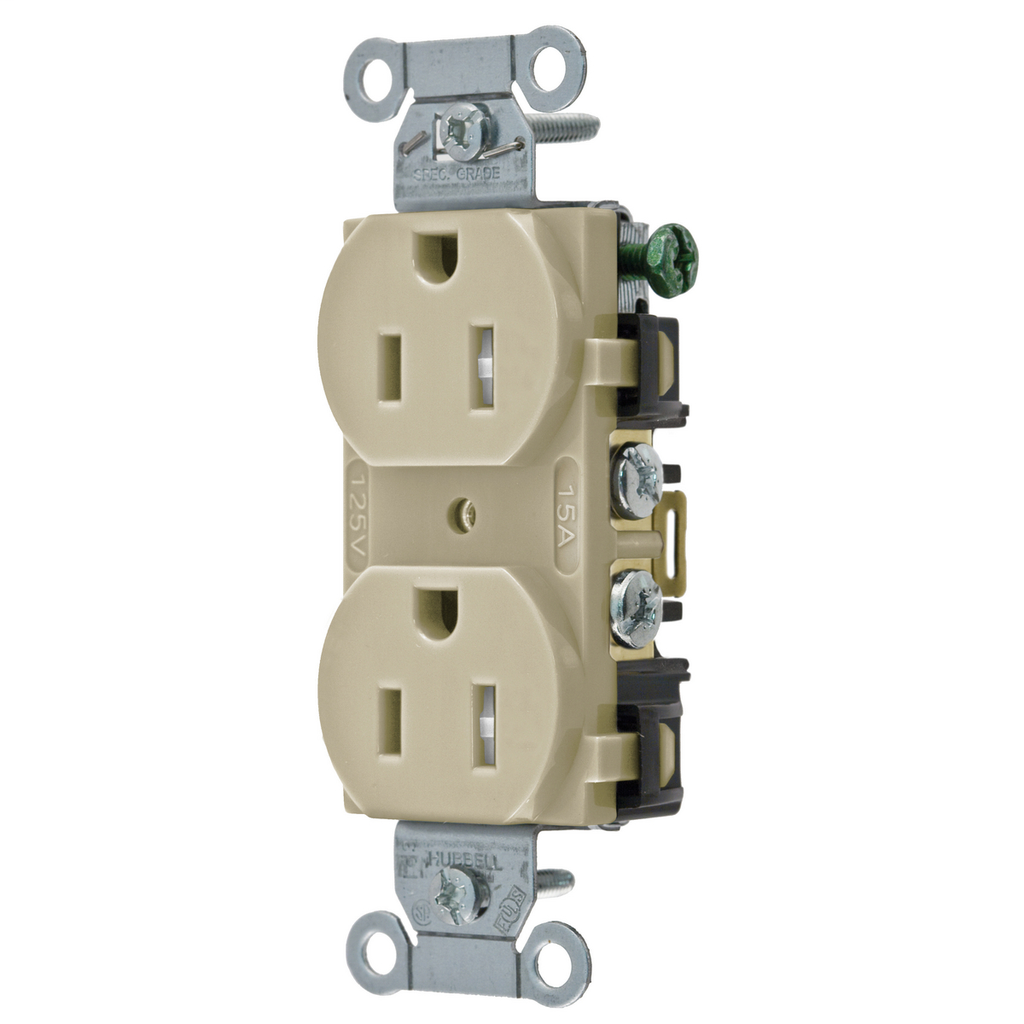

Product image for Hubbell BR15-ITR Ivory 15A 125V Duplex Receptacle - Tamper Resistant. Commercial Spec Grade
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Email

Hubbell BR15-ITR Ivory 15A 125V Duplex Receptacle - Tamper Resistant. Commercial Spec Grade

Manufacturer: Hubbell / Kellems | Catalog # BR15ITR | North Coast Part # 469165
$9.62/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Thursday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.3 in x 1.58 in x 1.16 in
Standard
C22.2,CSA,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Smooth Face
Tamper Resistant?
Yes
TC Connection
Back and Side Wired
Type
Traditional, Tamper-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 V

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585144085
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585144085
Product Series
Commercial Specification Grade
Product UPC
78358514408
Weight
0.15 lb

Dimensions

Height
1.16 Inch
Length
3.3 Inch
Width
1.58 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Smooth face
  • Wrap-around galvanized steel straps
  • Triple wipe contacts
Industry Standard(s)
  • Certified to CSA C22.2, No. 42
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
