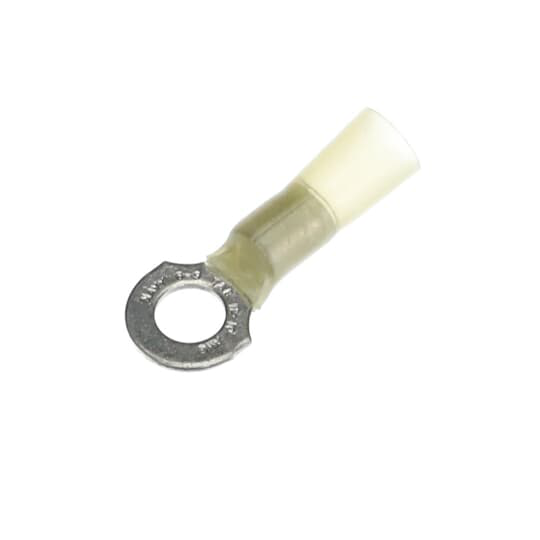

Product image for ABB RCS10-14X HEAT-SHR RING TERM, 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

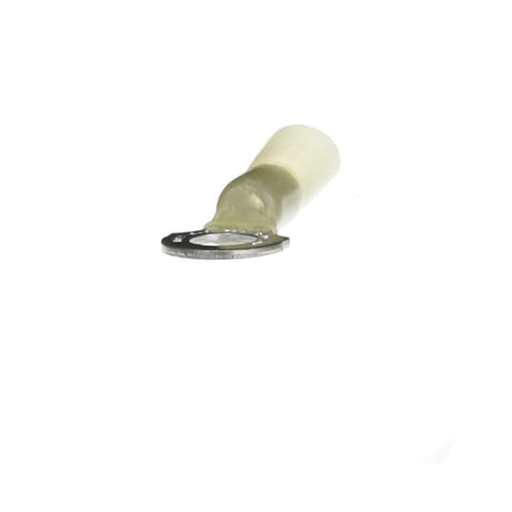

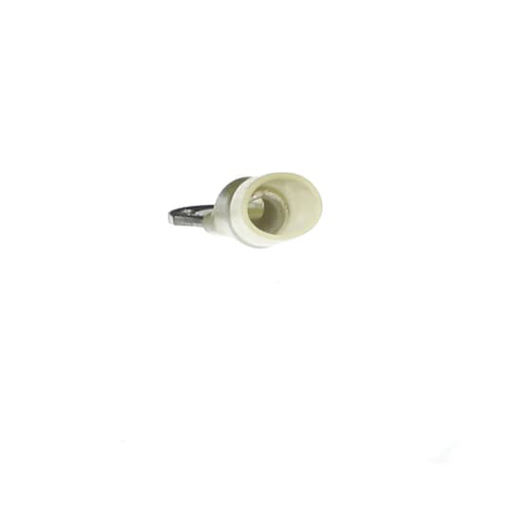

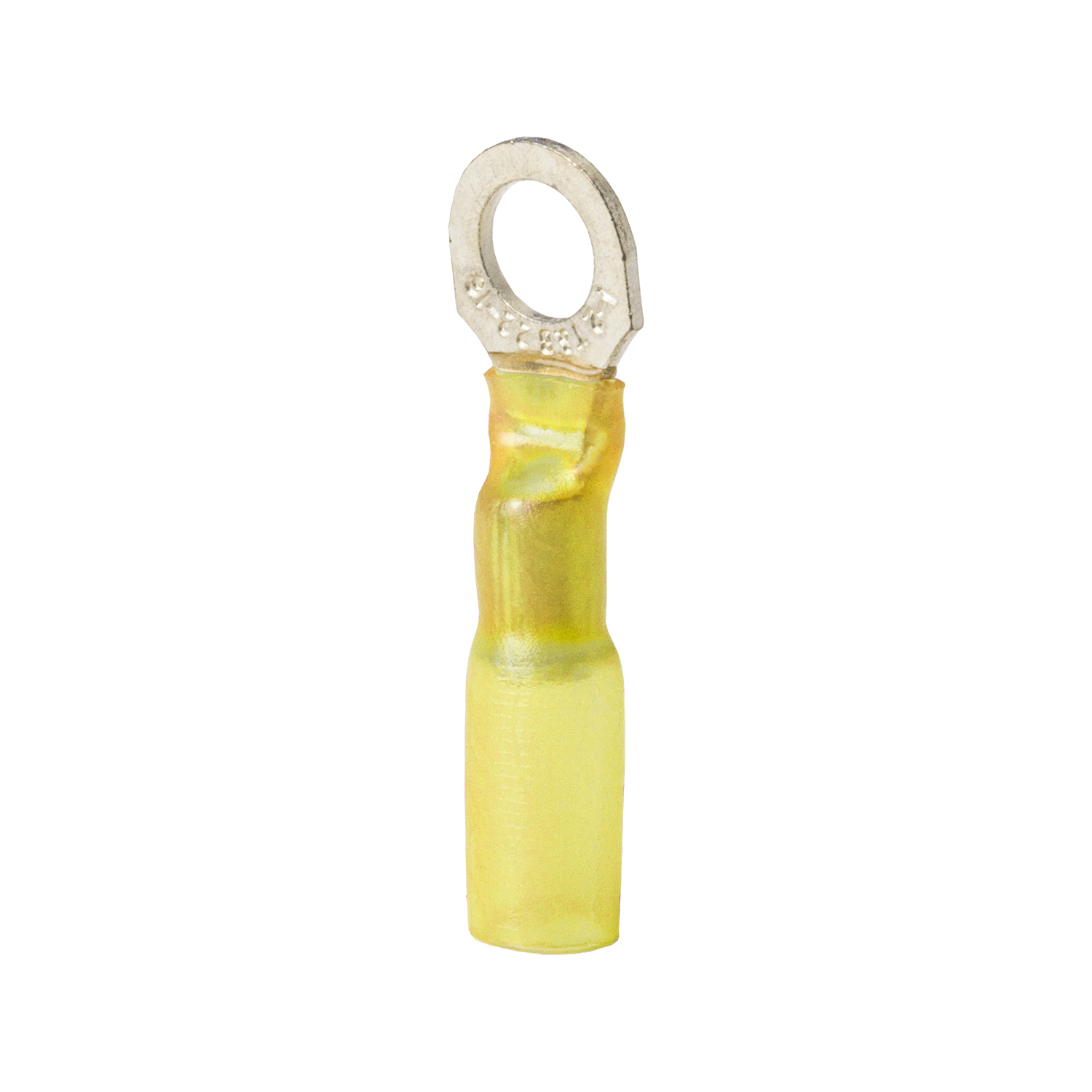

ABB RCS10-14X HEAT-SHR RING TERM, 1

Manufacturer: Thomas & Betts | Catalog # RCS10-14X | North Coast Part # 47069
$523.23/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Heat Shrinkable Ring Terminal, Length 1.34 Inches, Width .49 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RCS
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210168081
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363159599
Product UPC
78621016808

Dimensions

Height
1.7 Inch
Thickness
.04 in
Width
2.65 in
Certifications
  • UL
  • CSA
Notes
  • Not available on Mylar Tape.
Features
  • These terminals are self-insulated. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
