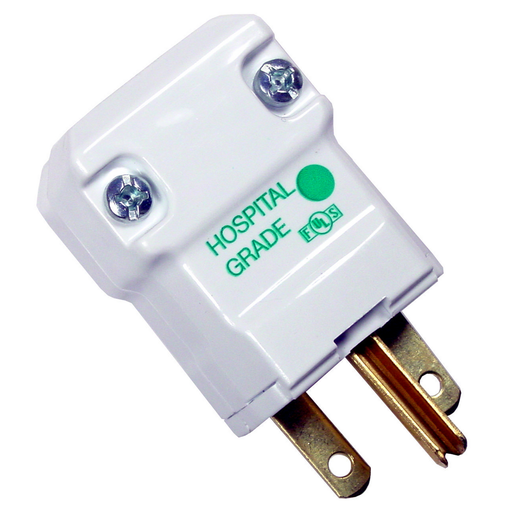

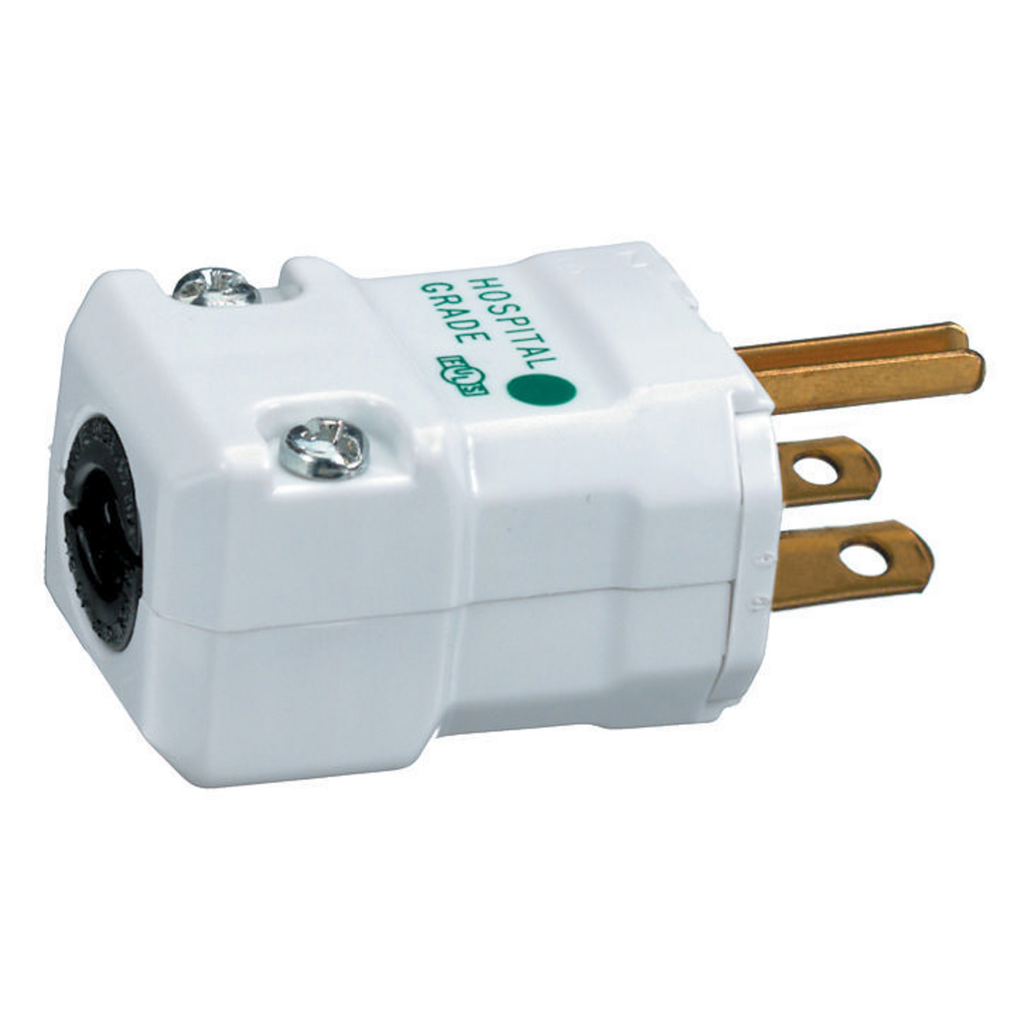

Hubbell HBL8666V VALISE Plug, HG, 15A 250V, 6-15P, WH

Manufacturer: Hubbell / Kellems | Catalog # HBL8666V | North Coast Part # 474047
$36.70/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 250V, 6- 15P, White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
For Heavy Duty Applications
Conductor Size
18-12 AWG
Cord Type
Portable
Current
15 Amp
Grade
Hospital
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
6-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No 42 File 280C,CSA,Fed. Spec. W-C-596,NEMA® WD-6,UL,UL498 File No. E1706
Style
Valise
TC Connection
Terminal Screws
Type
Standard Sized, Hospital Grade
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Valise®

General Product Info

12-Digit UPC
783585016405
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585016405
Product Series
Hospital Grade
Product UPC
78358501640
Weight
0.1 lb

Dimensions

Height
1.13 Inch
Length
1.88 Inch
Width
1.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Standard Product
