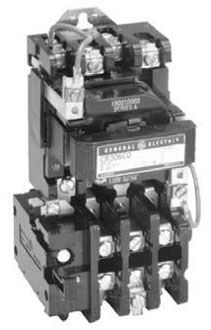

Product image for GE CR306E104 STARTER
Image thumbnail 0
Image thumbnail 1
Email

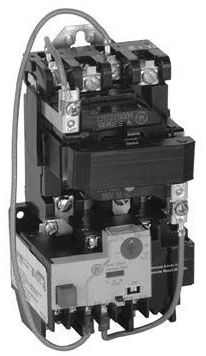

GE CR306E104 STARTER

Manufacturer: GE Distribution Equipment | Catalog # CR306E104 | North Coast Part # 475405
$3,540.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ABB's full voltage (600-volt maximum) magnetic motor starter has an encapsulated coil and a 3-leg overload relay to protect against overloads in all phases. It is on standard specifications of major manufacturers. The line offers features and benefits most asked for by users. Forms available include reversing and non-reversing, two-speed and combination, sizes 00-9.

Technical Information

Applications
Electrical distribution and Control
Current
90 Amp
Enclosure
3
Type
Contactors

Manufacturer Information

Brand
GE Industrial Solutions
Sub Brand
GE Industrial Solution

General Product Info

12-Digit UPC
783166361092
GTiN
00783166361092
Product UPC
78316636109
Features
  • 300 Series Full Voltage Contactors and Motor Controllers has Encapsulated Coils
  • Magnetic Motor Starters May be Used for Starting Full Voltage, Non-Reversing, Single Speed AC Motors up to 1600 Horsepower, 600 Volts Maximum, Providing Protection to the Motor against Running or Stalled Overloads
  • Their Compact Size and Ease of Wiring Make them Especially Suitable for Motor Control Centers, Custom Type Control Panels and Switchgear Equipment
Additional Information
  • Overall Dimension 8.75 Inch Width x 7.31 Inch Depth x 20.25 Inch Height
  • Number of Poles 3
  • Operating Temperature Rating -20 to 70 Deg C
  • Includes Holding Interlock, Pressure Terminal for Line and Load Connection
  • Approval UL, UL (Canada and US)
