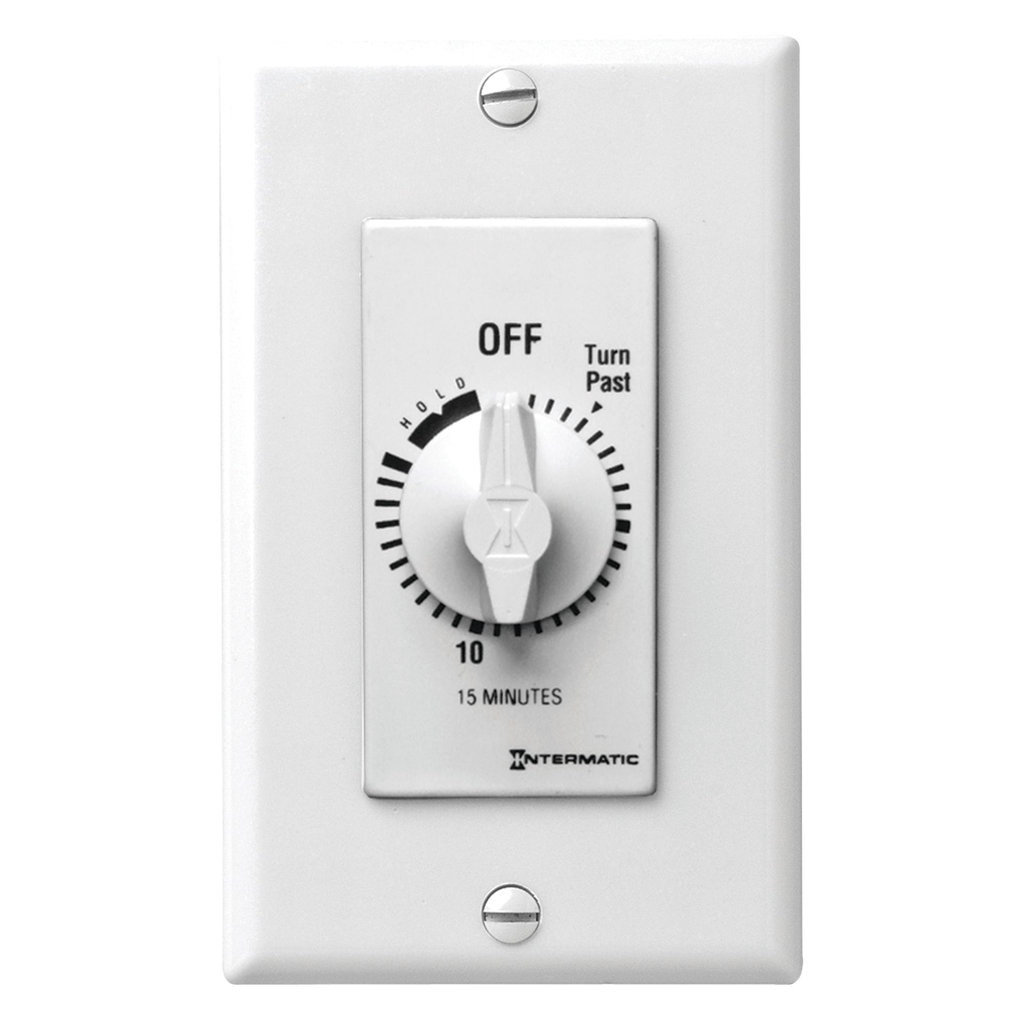

Product image for Intermatic FD15MHW 15 Minute 125 to 277 VAC 60 Hz SPST White Countdown Timer with 15 Minute Hold
Image thumbnail 0
Image thumbnail 1
Email

Intermatic FD15MHW 15 Minute 125 to 277 VAC 60 Hz SPST White Countdown Timer with 15 Minute Hold

Manufacturer: Intermatic | Catalog # FD15MHW | North Coast Part # 479881
$70.77/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Load Type
Back
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Configuration
In-Wall
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Temperature Rating
40.0 degrees C
Type
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Voltage
277 Volt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275185555
Color
White
GTiN
00078275185555
Product Category
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Product Type
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Product UPC
07827518555
Weight
0.299 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 15-Minute timer with hold
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
