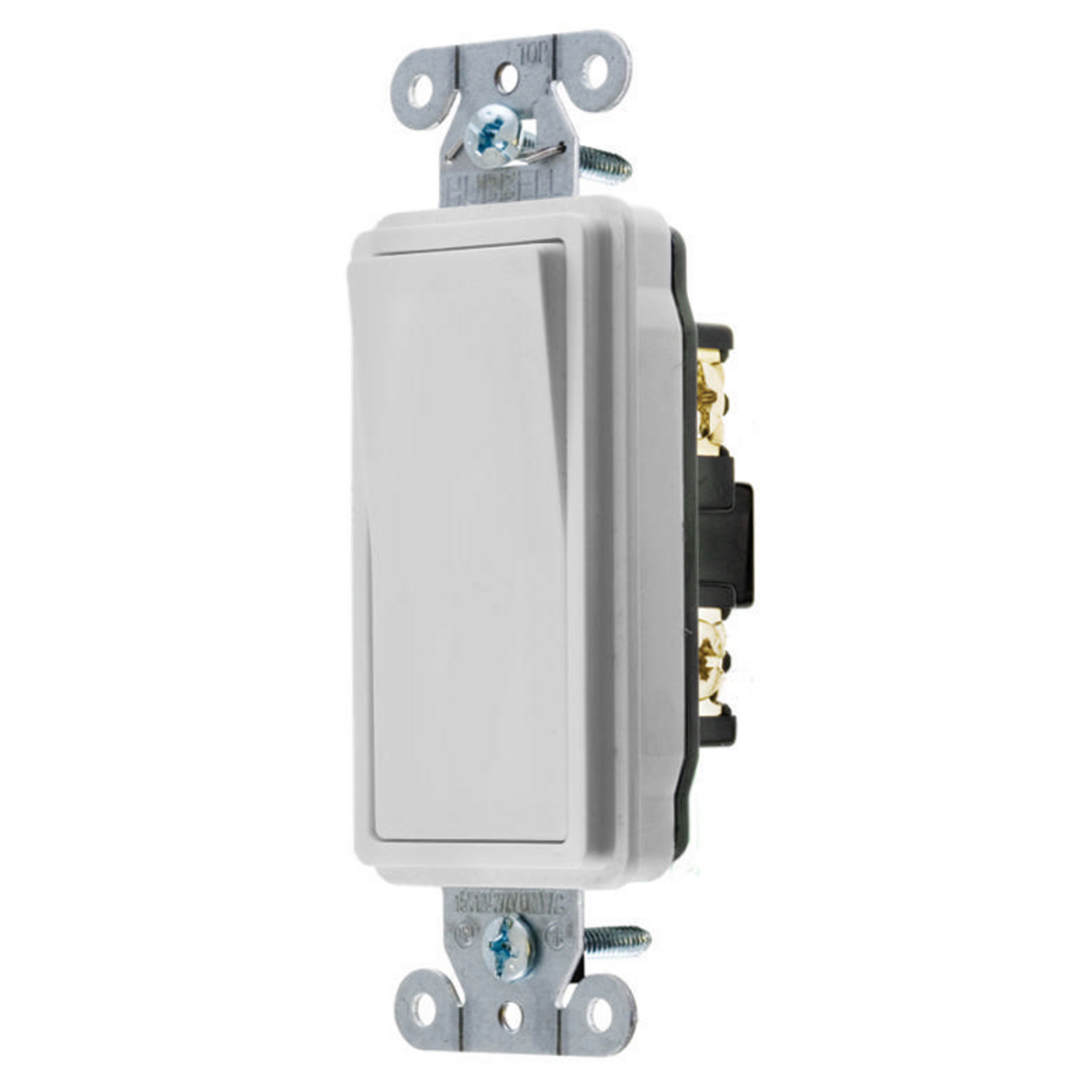

Hubbell DS115OW SWITCH, DECO SER, SP, 15A 120/277V, OW

Manufacturer: Hubbell / Kellems | Catalog # DS115OW | North Coast Part # 485438
$9.78/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, Office White

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
Commercial Heavy Duty
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Indicator
None
Material
Thermoplastic
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
50000
Operating Temperature
-40 degrees C
Power Rating
4155 W
Size
Standard Sized
Standard
UL
Style
Single Pole
Switch Type
Single Pole
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C Minimum without Impact, 75 degrees C Maximum
Terminal Type
Screw
Type
General Purpose, Rocker, Standard
Voltage
120-277 Volt
Wattage
4.155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585151250
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585151250
Product Series
General Purpose
Product UPC
78358515125
Weight
0.2 lb

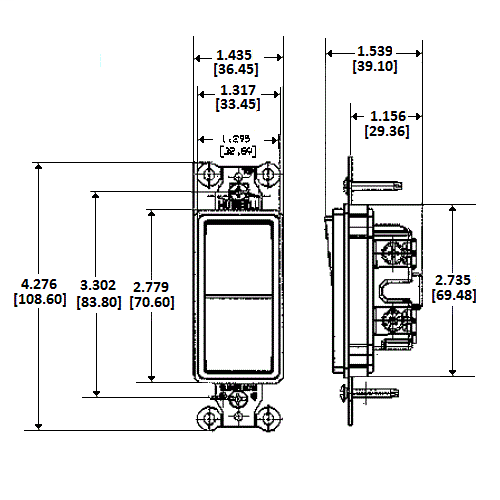

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.43 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
