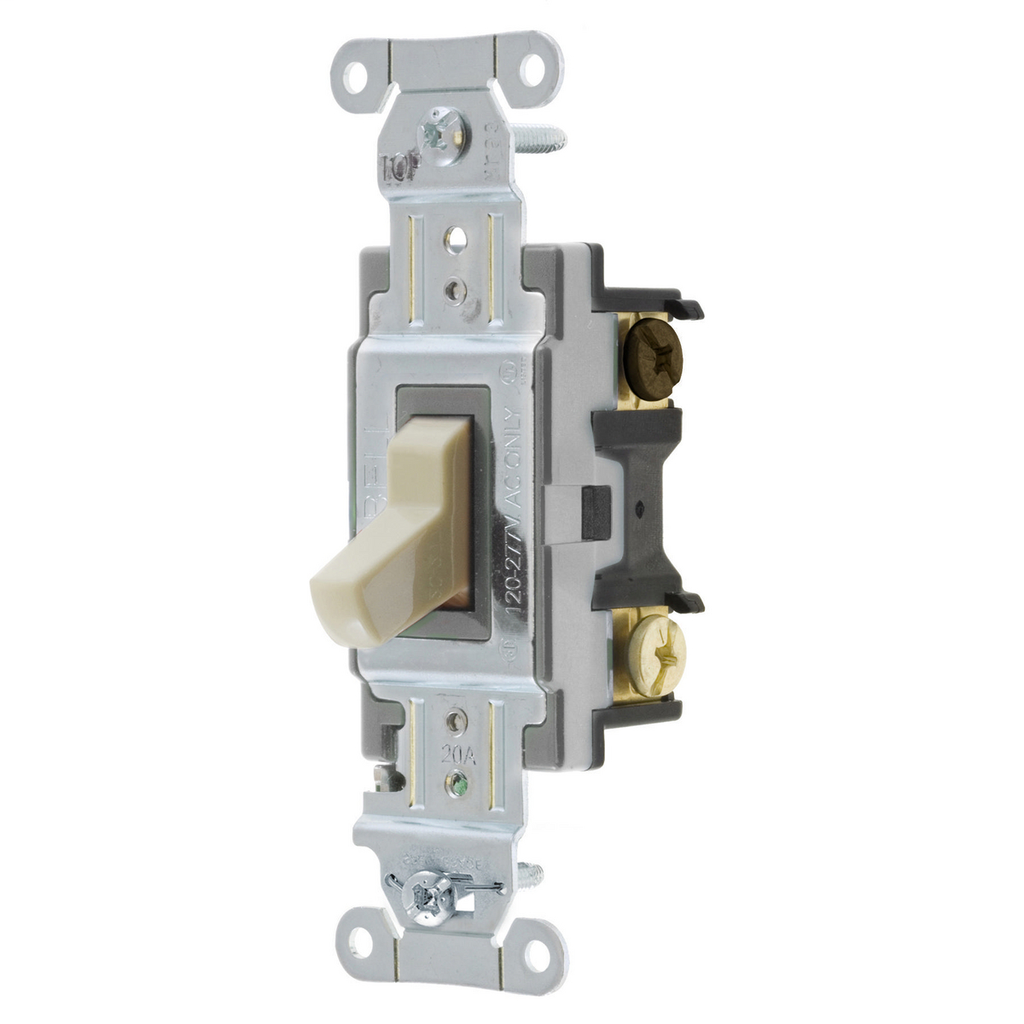

Hubbell Wiring Devices CSB420I 20 Amp 120/277 VAC 4-Way Ivory Toggle Switch

Manufacturer: Hubbell / Kellems | Catalog # CSB420I | North Coast Part # 485448

$16.28/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
20 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 20A 120/277V AC, Back and Side Wired, Ivory

Technical Information

Action
DPDT
Actuator
Toggle
Amperage
20 Amp
Applications
Commercial Spec Grade
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Commercial Specification
Material
Nylon
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuous 75C and minimum -40C without Impact
Size
4.18 in x 1.49 in x 1.83 in
Standard
UL
TC Connection
Back and Side Wired
Type
General Purpose, Standard, 4-Way, 2-Position
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
AC Toggle Switches

General Product Info

Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585154312
Product Series
General Purpose
Product UPC
78358515431
Weight
0.15 lb

Dimensions

Height
1.66 Inch
Length
4.16 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
  • Steel, zinc plated bridge is corrosion resistant
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
