Thomas & Betts 18RA-516 5/16 Inch Bolt Hole 22-16 AWG Wire Range Red Insulated Vinyl Ring Terminal

Manufacturer: Thomas & Betts | Catalog # 18RA-516 | North Coast Part # 48628
$238.46/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

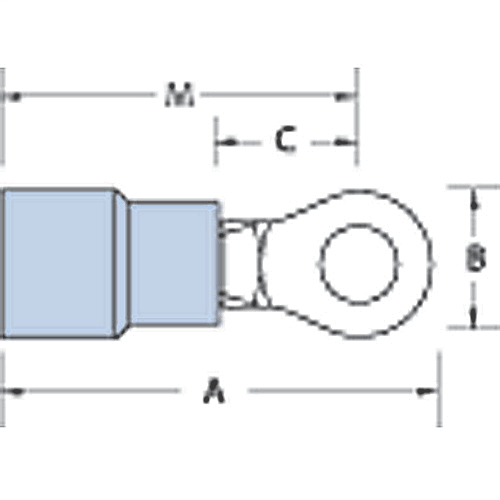

Vinyl-Insulated Ring Terminal, Length 1.13 Inches, Width .50 Inches, Maximum Insulation .150, Bolt Hole 5/16 Inch, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
5/16 in
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Vinyl Insulated Ring Terminal
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210801018
Color
Red
Finish
Electro Tin Plated
GTiN
05414363138556
Product UPC
78621080101

Dimensions

Height
8.3 Inch
Thickness
.03 in
Width
10.4 in
Certifications
  • UL
  • CSA
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
