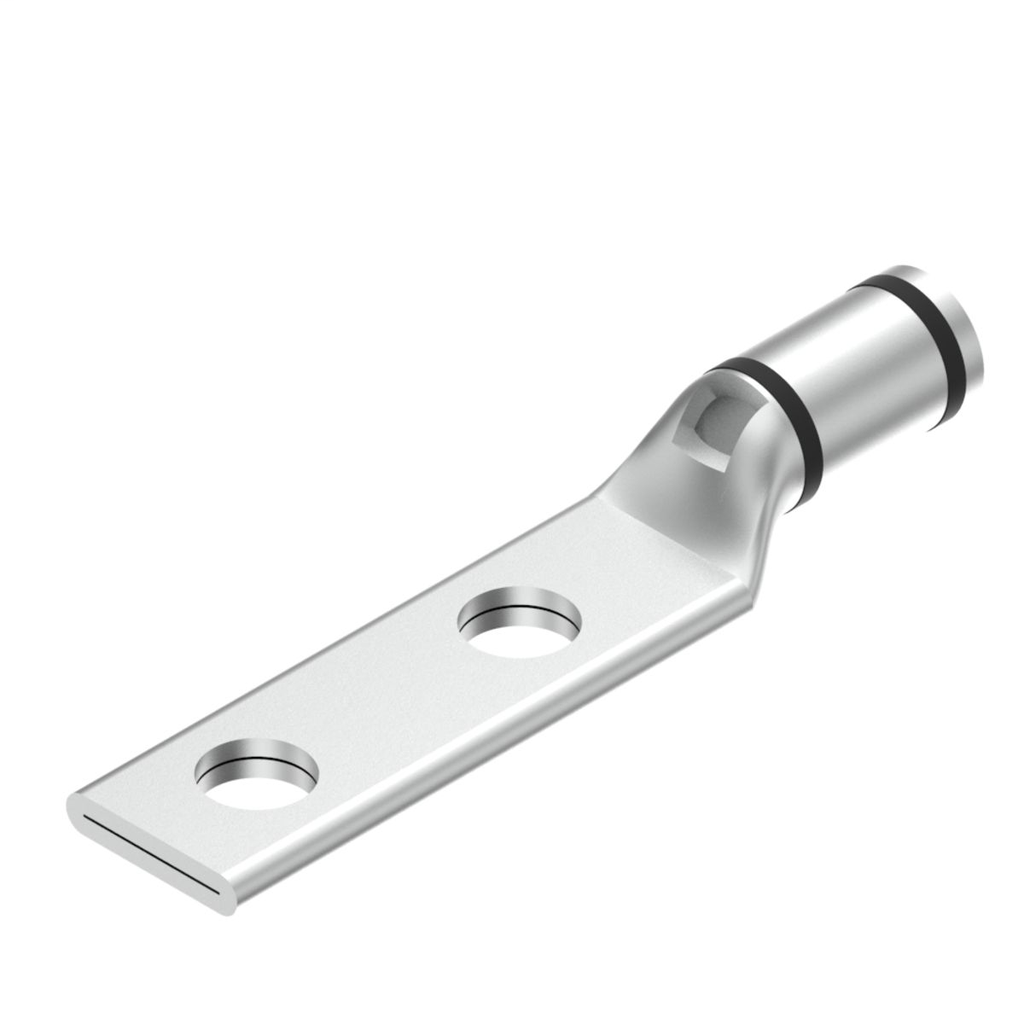

Product image for Burndy YAV26L2TC14E2FX 2/0 Flex G,H,I,K,M,DLO, 2/0 AWG CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Black Color Code, 13 Die Index
Email

Burndy YAV26L2TC14E2FX 2/0 Flex G,H,I,K,M,DLO, 2/0 AWG CU, Two Hole, 1/4 Stud Size, 3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Black Color Code, 13 Die Index

Manufacturer: Burndy | Catalog # YAV26L2TC14E2FX | North Coast Part # 486287
$32.03/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Copper Compression Lug, 2 Hole w/ Inspection window, 2/0 Flex, 1/4" Stud, 3/4" Stud Hole Spacing, Short Barrel, Tin Plated.

Technical Information

Applications
For Flex Conductors
Cable Size
2/0 AWG, 2/0 AWG Weld, 325/24, 70 SQ-MM For Class 5 Conductor
Color Coding
Black
Conductor Material
Copper
Conductor Size
2/0 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Stud Size
0.25 in
Type
Standard Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810033609
Finish
Tin Plated
GTiN
00781810033609
Product UPC
78181003360

Dimensions

Height
0.63 Inch
Hole Size
7 mm
Length
2.68 Inch
Overall Length
2.68 in
Width
0.93 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Feature - Barrel Style
  • Chamfered
  • Skived
