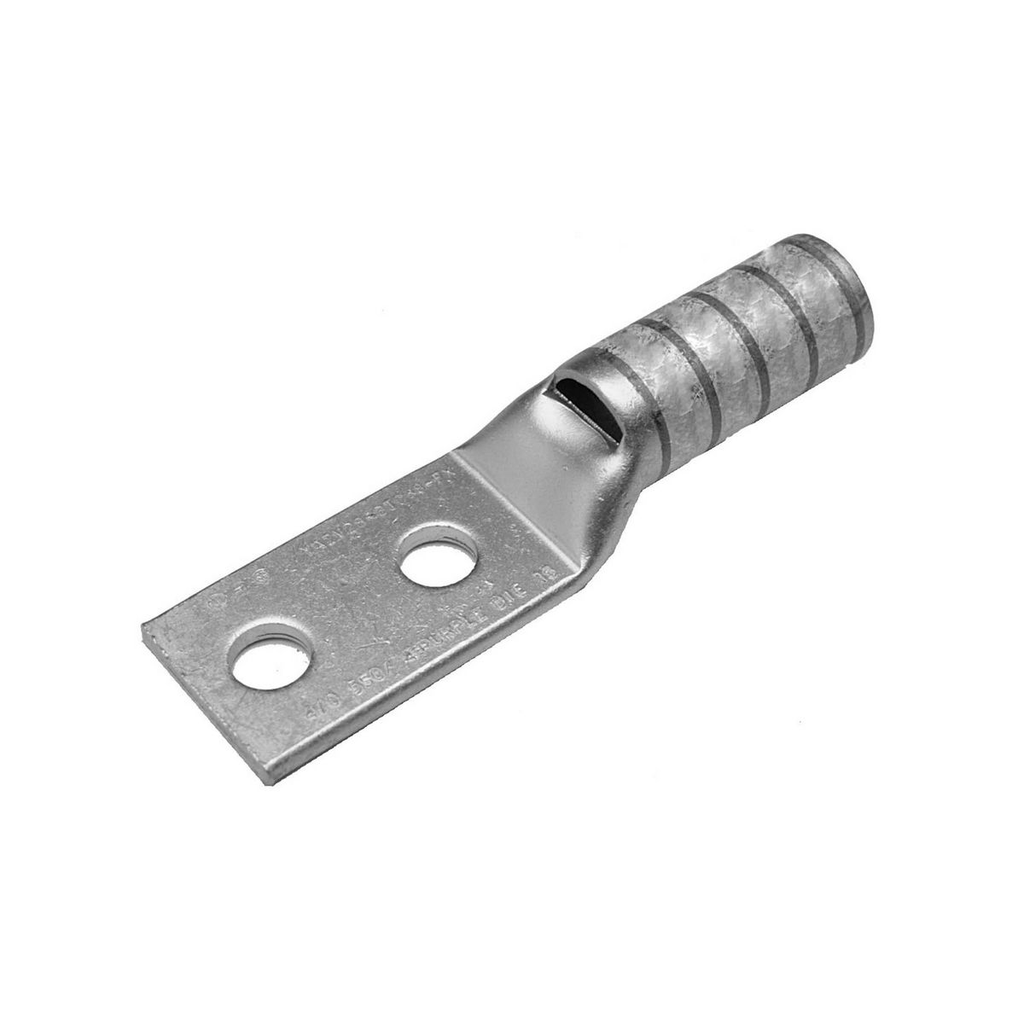

Product image for Burndy YAZV282NTCFX 4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Purple Color Code, 15 Die Index
Image thumbnail 0
Image thumbnail 1
Email

Burndy YAZV282NTCFX 4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Purple Color Code, 15 Die Index

Manufacturer: Burndy | Catalog # YAZV282NTCFX | North Coast Part # 4863
$31.25/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Copper Compression Lug, 2 Hole w/ Inspection Window, 4/0 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

Technical Information

Applications
For Flex Conductors
Cable Size
4/0 AWG, 4/0 AWG Weld, 550/24, 120 SQ-MM For Class 2 And Class 5 Conductors
Color Coding
Purple
Conductor Material
COPPER
Connection Type
Long Barrel
Material
Copper
Number of Holes
2 Hole
Stud Size
0.5 in
Type
Long Barrel, Skive
Voltage
35,000 Volt
Wire Size
0000 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810165966
Finish
Tin Plated
GTiN
00781810165966
Product UPC
78181016596

Dimensions

Height
0.77 Inch
Hole Size
0.56 in
Length
5.21 Inch
Width
1.14 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color coding
