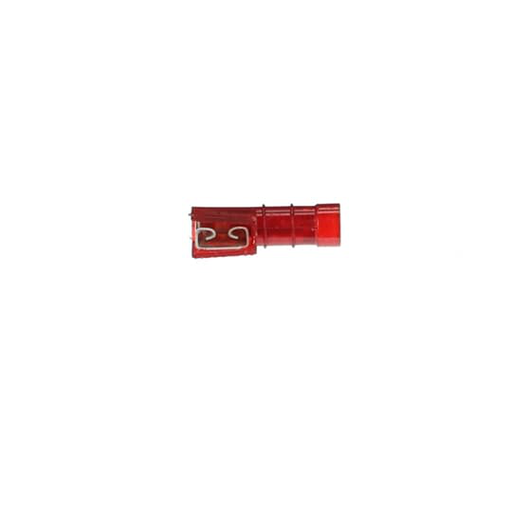

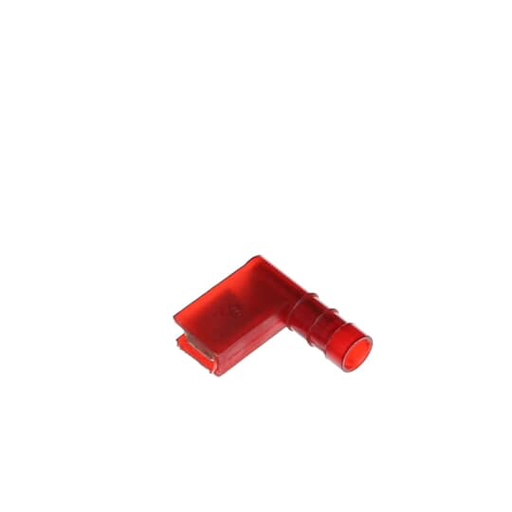

Thomas & Betts RA2577F Nylon Open-Top Insulated 90deg Flag Female Disconnect - 22-18, .250x.032tab

Manufacturer: Thomas & Betts | Catalog # RA2577F | North Coast Part # 48934
$153.12 /c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inch, Width .71 Inch, Maximum Insulation .170, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Brass, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
22-18 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Brass
Standard
UL E66716
Tab Size
6.3 x 0.8 mm
Temperature Rating
105 degrees C
Type
Nylon Insulated Open Top 90 Degree Flag Female Disconnect
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210894430
Color
Red
Finish
Electro-Tin Plated
GTiN
05414363157731
Product UPC
78621089443

Dimensions

Length
0.8 Inch
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
