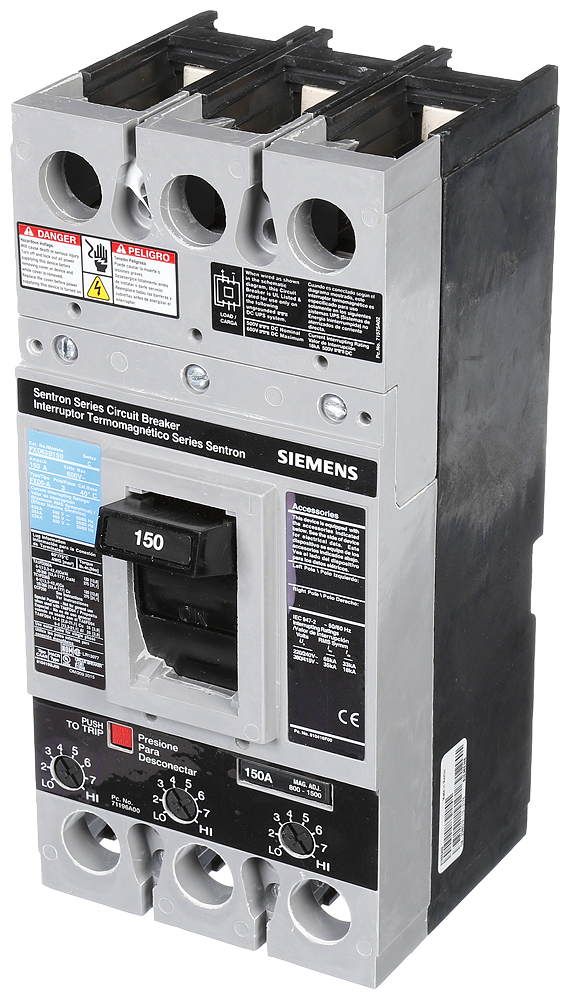

Siemens Industry FXD63B150 3-Pole 600 VAC 150 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # FXD63B150 | North Coast Part # 491416

$1,236.59/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
0 available

For Delivery

Out of stock, call for availability
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 150A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.50 x 9.5x 4.00.

Technical Information

Actuator
Varying
Amperage
150 Amp
Applications
Standard 40C Breaker
Blade Dimensions
6.9 in L x 5.5 in W x 11.1 in H
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kA
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
N/A
Temperature Rating
40 C
Trip Range
800 - 1500
Trip Type
Thermal Magnetic
Type
FXD6, Standard
Voltage
600 Volt

Manufacturer Information

Family Brand Name
Siemens
Sub Brand
Sentron

General Product Info

GTiN
00783643211254
Product UPC
78364321125

Dimensions

Height
11.1 Inch
Length
6.9 Inch
Width
5.500
