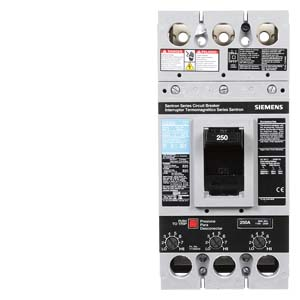

Product image for Siemens FXD63B250 3-Pole 600 VAC 250 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens FXD63B250 3-Pole 600 VAC 250 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # FXD63B250 | North Coast Part # 493631
$4,566.58/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 250A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Amperage
250 Amp
Applications
Standard 40C Breaker
Current
250 Amp
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
N/A
Temperature Rating
40 degrees C
Trip Range
1100 - 2500
Trip Type
Thermal Magnetic
Type
FXD6, Standard
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211292
GTiN
00783643211292
Product UPC
78364321129
Weight
8.600 lb

Dimensions

Height
6.9 Inch
Length
11.2 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Mexico
