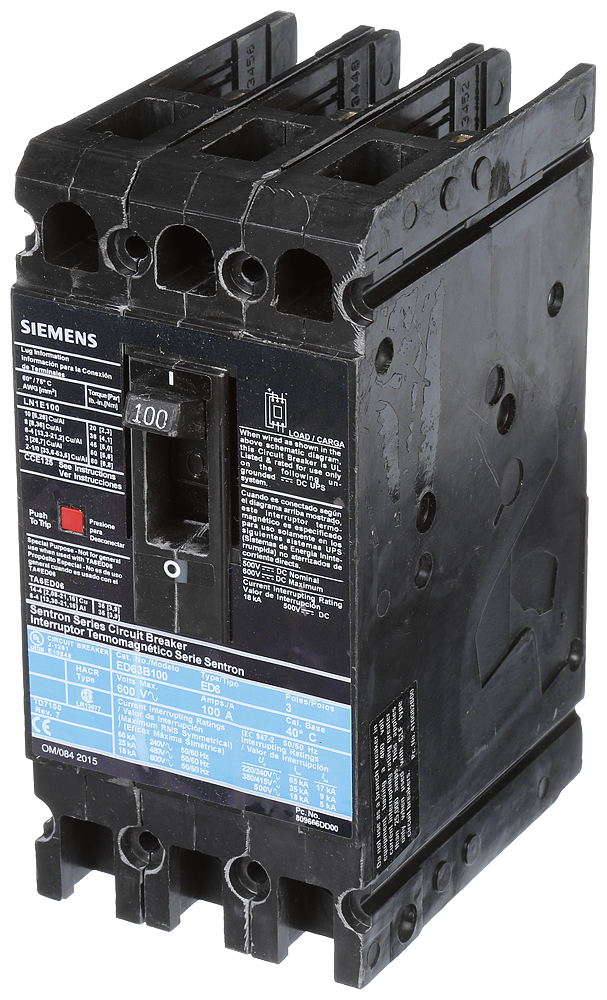

Product image for Siemens ED63B100L 3-Pole 100 Amp 600 Volt 18 kA Circuit Breaker Lugs
Image thumbnail 0
Image thumbnail 1
Email

Siemens ED63B100L 3-Pole 100 Amp 600 Volt 18 kA Circuit Breaker Lugs

Manufacturer: Siemens | Catalog # ED63B100L | North Coast Part # 496835
$5,315.87/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN: 3.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying
Amperage
100 Amp
Applications
Standard 40C Breaker
Connection Type
Line/Load Lugs Installed
Current
100 Amp
Enclosure
Varying
Frame
ED
Frequency
50/60 Hz
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40degrees C
Standard
HACR
TC Connection
Line/Load lugs installed
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
ED6
Voltage
250 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643236387
GTiN
00783643236387
Product UPC
78364323638
Weight
3.870 lb

Dimensions

Height
7 Inch
Length
8.85 Inch
Width
4.500 in

Certifications and Compliance

Country of Origin
Mexico
