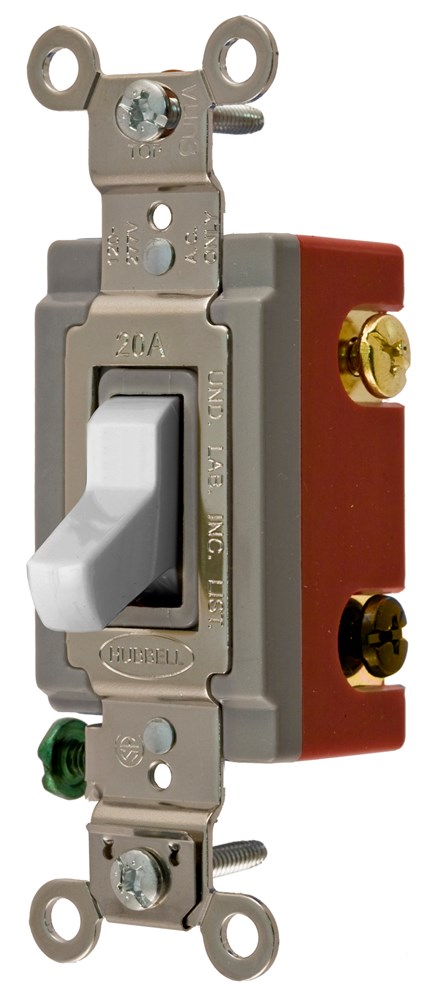

Hubbell HBL1224OW4 WAY TOG, IND GRD, 20A 120/277V, OW

Manufacturer: Hubbell / Kellems | Catalog # HBL1224OW | North Coast Part # 498843
$161.84/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Toggle, back and side wired

Technical Information

Action
DPDT
Actuator
Toggle
Amperage
20 Amp
Applications
Back and Side Wired
Base Material
Thermoset
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Industrial
Material
Thermoset,Thermoset
Max Current
20 A
Max Voltage
277 V
Number of Poles
2 Pole
Operating Cycles
50k
Operating Temperature
Maximum continuous 75degrees C and minimum -40degrees C without Impact
Screw Material
Brass
Size
4.06 in x 1.31 in x 1.87 in
Style
Four Way
TC Connection
Back and Side Wired
Type
Toggle
Voltage
120-277 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585366210
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585366210
Product UPC
78358536621

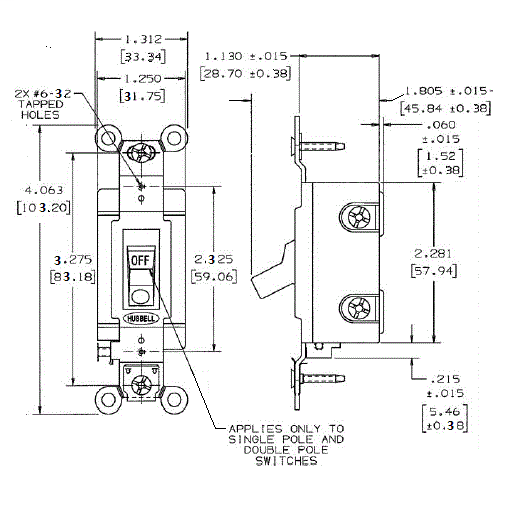

Dimensions

Height
1.87 Inch
Length
4.06 Inch
Width
1.31 in
Overview
  • Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Office White Toggle
  • Abuse resistant nylon toggle
  • Large brass binding head screws with deep slots
  • Strip gauge for accurate wiring
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
