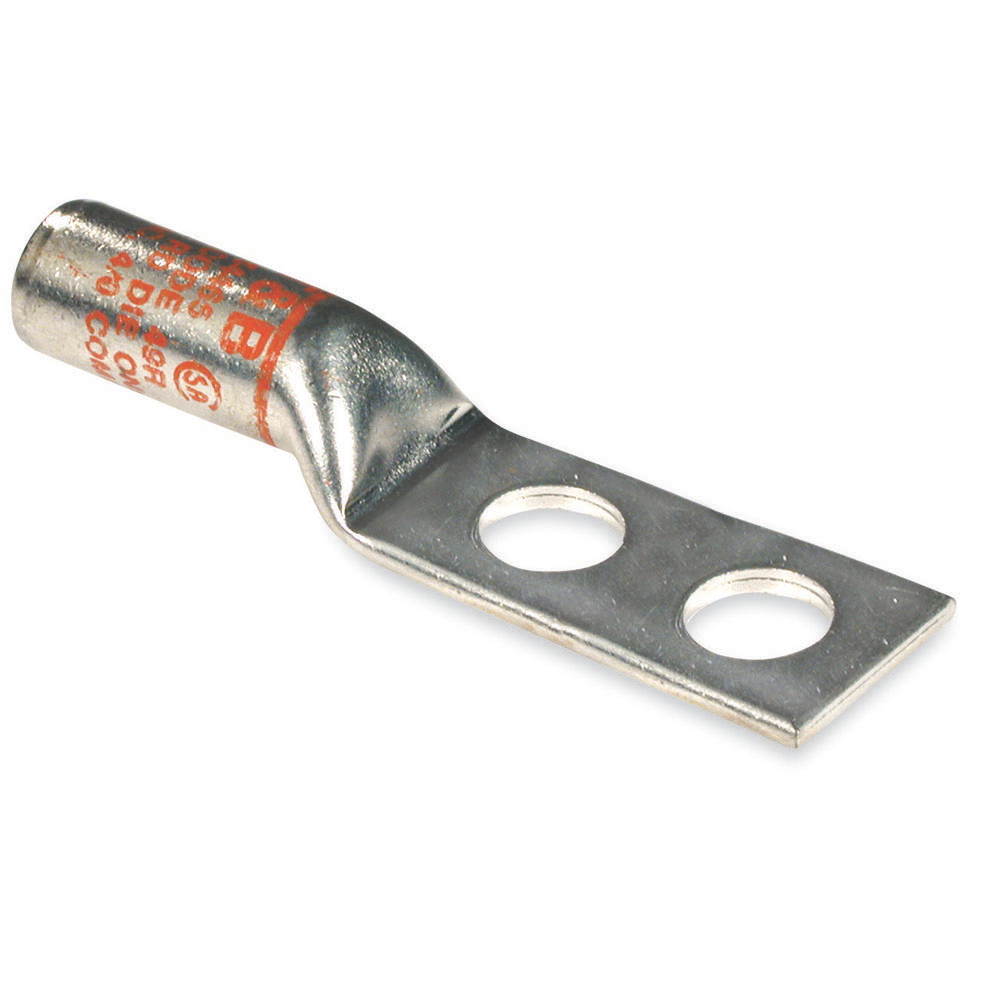

Color-Keyed 54490 Copper Lug

Manufacturer: Thomas & Betts | Catalog # 54490 | North Coast Part # 49930

$70,084.90/c (100 ea)
ea
Order in multiples of 3 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Copper Two-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size 1000 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 125R

Technical Information

Barrel Length
Long
Barrel Shape
Standard
Cable Size
1000 kcmil
Insulated?
No
Material
Copper
Number of Holes
2 Hole
Number of Studs
2
Standard
UL E9809
Stud Size
0.5 in
Temperature Rating
105 degrees C
Tongue Angle
Straight
Tongue Width
Standard
Type
Long Barrel
Voltage
15 kV
Wire Size
1000 kcmil

Manufacturer Information

Brand
Color-Keyed

General Product Info

12-Digit UPC
786210544908
Finish
Tin Plated
GTiN
00786210544908
Product UPC
78621054490
Shape
Round
Features
  • The rounding die overlapped compressions provide a smooth round surface. This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.
  • Recommended for up to 15KV applications, installed with standard T&B tools with special rounding dies.
  • High conductivity wrought copper, tin plated. Cable Area Clearly Identified on Lug.
Notes
  • No adapter required. TBM15I only.
  • Cable Size: Concentric and compact strandings.
  • TBM14M and 13100A UL listing limited to 1/0 AWG to 500 kcmil cable sizes.
