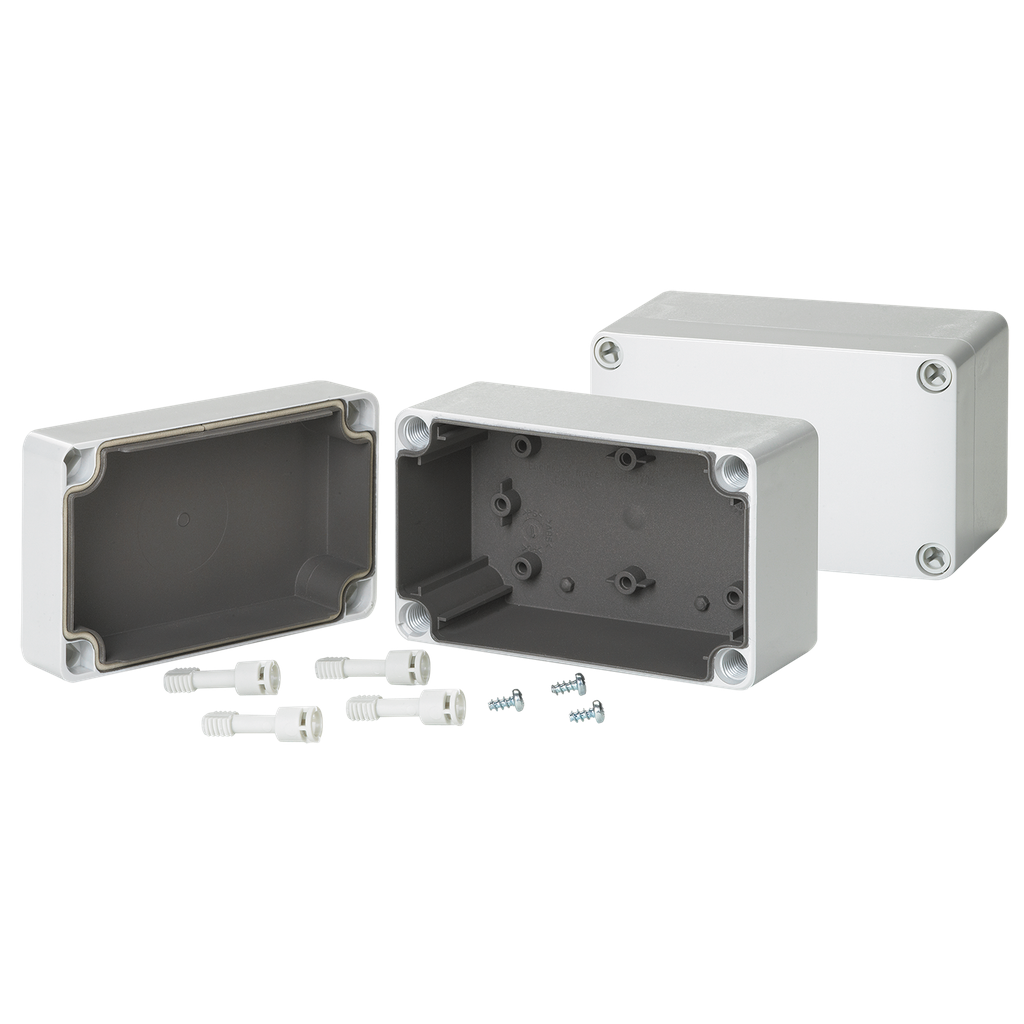

Product image for Hoffman Q1388PCEMC QLINE E, EMC, Type 4X, 125x 75x 74mm, Polycarbonate
Email

Hoffman Q1388PCEMC QLINE E, EMC, Type 4X, 125x 75x 74mm, Polycarbonate

Manufacturer: nVent Hoffman | Catalog # Q1388PCEMC | North Coast Part # 502015
$125.14/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Medium-size QLine E polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Body Thickness
3 mm
Capacity
33 cu in
Color Coding
RAL 7035
IP Rating
66
Material
Polycarbonate
Size
125 x 75 mm
Standard
12,13,4X,CUL Listed Per CSA C22.2 No 94: Type 4,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Qline™

General Product Info

12-Digit UPC
783510456894
Color
Light Gray
Finish
Matte
GTiN
00783510456894
Product UPC
78351045689
Weight
0.2 lb

Dimensions

Depth
2.91 Inch
Height
4.92 Inch
Length
4.9 Inch
Width
2.95 in
Features
  • Body is impact-resistant polycarbonate
  • EMC conductive coating in base and cover
  • Gasket of silver/silicone
  • Mounting holes molded directly under cover screws
  • Screws provided for mounting optional panel
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Cross-point flush cover screws are strong, durable polyamide
  • Mounting tracks along body side walls for PC card installation
  • Molded internal pads for mounting optional panels, rails and other components
