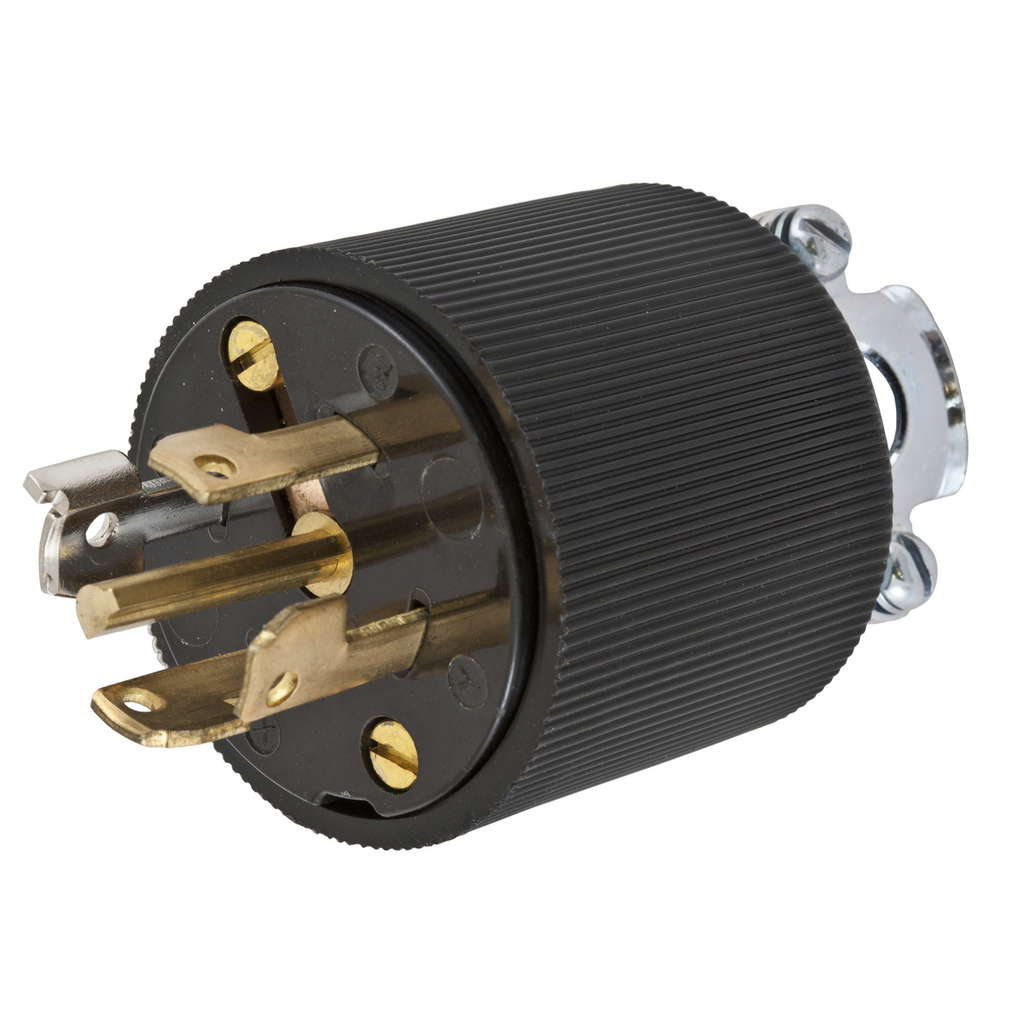

Product image for Hubbell HBL45915 20 Amp 120/208 VAC 4-Pole 5-Wire Black Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL45915 20 Amp 120/208 VAC 4-Pole 5-Wire Black Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL45915 | North Coast Part # 503919
$282.05/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Variload®, Male Plug, 20A 3-Phase Wye 120/208V AC only - 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black Non Metallic Body, Unique Center Pin.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Material
Composite
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL 498
TC Connection
Screw Terminal
Type
Standard, Unique Center Pin
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Variload®

General Product Info

12-Digit UPC
783585238104
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585238104
Product UPC
78358523810
Weight
0.4 lb

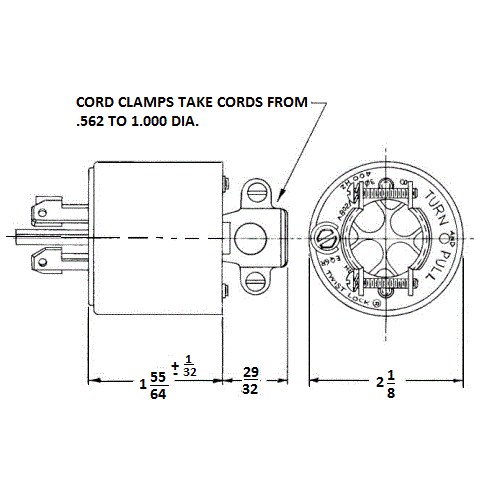

Dimensions

Height
3.79 Inch
Length
2.13 Inch
Width
2.13 in

Certifications and Compliance

Country of Origin
USA
Features
  • Heat resistant thermoset construction
  • Non-interchangable center pin configuration to be designated to different circuits
  • Unique Center Pin
