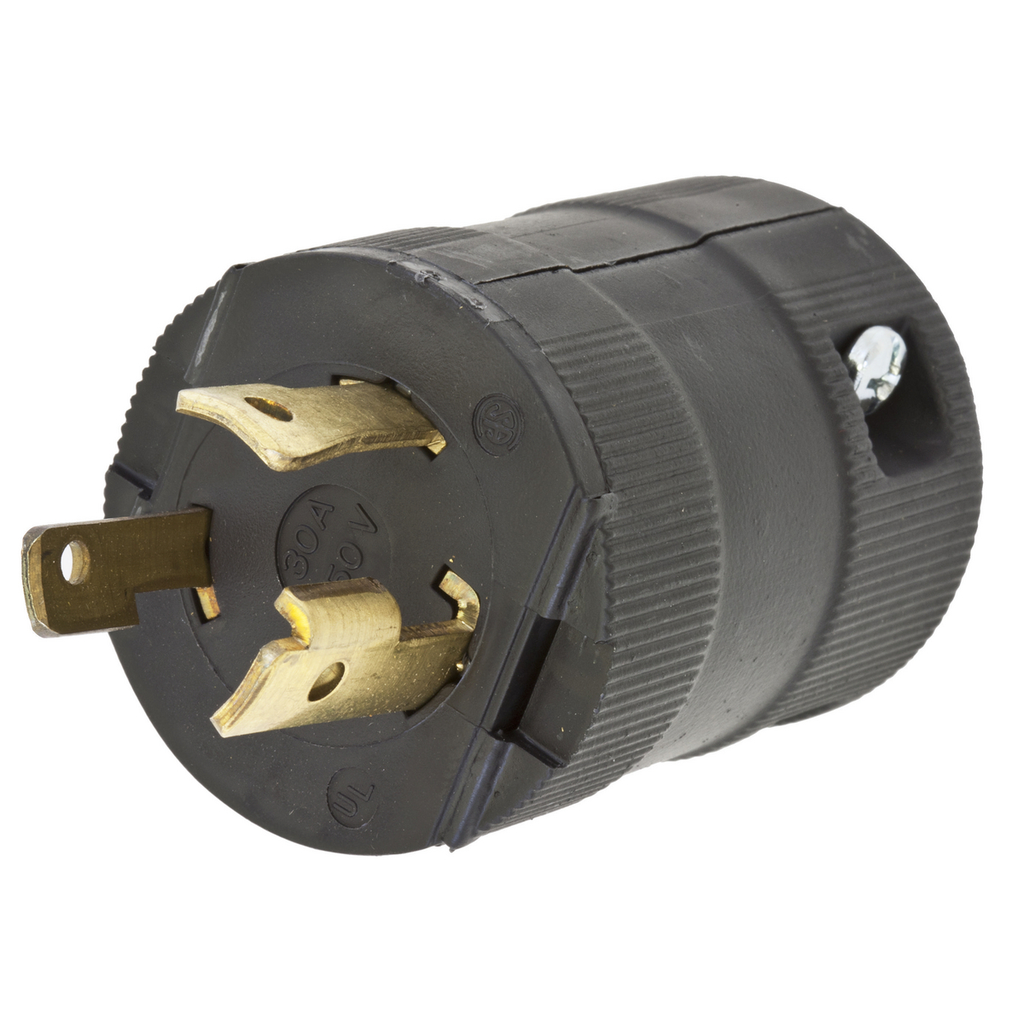

Product image for Hubbell HBL2621VBK Locking VAL Plug, 30A 250V, L6-30P, BK
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL2621VBK Locking VAL Plug, 30A 250V, L6-30P, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL2621VBK | North Coast Part # 503920
$45.78/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Vasile®, Plug, 30A 250V, 2-Pole 3-Wire Grounding, NEMA L6-30P, Black Nylon.

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L6-30P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#8-32 Steel
Size
2.5 in x 1.78 in x 1.78 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
250 Volt
Wattage
7500 Watt
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585043166
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585043166
Housing Material
Black Nylon
Product UPC
78358504316
Weight
0.30 lb

Dimensions

Height
1.78 Inch
Length
2-1/2 Inch
Width
1.78 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Standard Product
