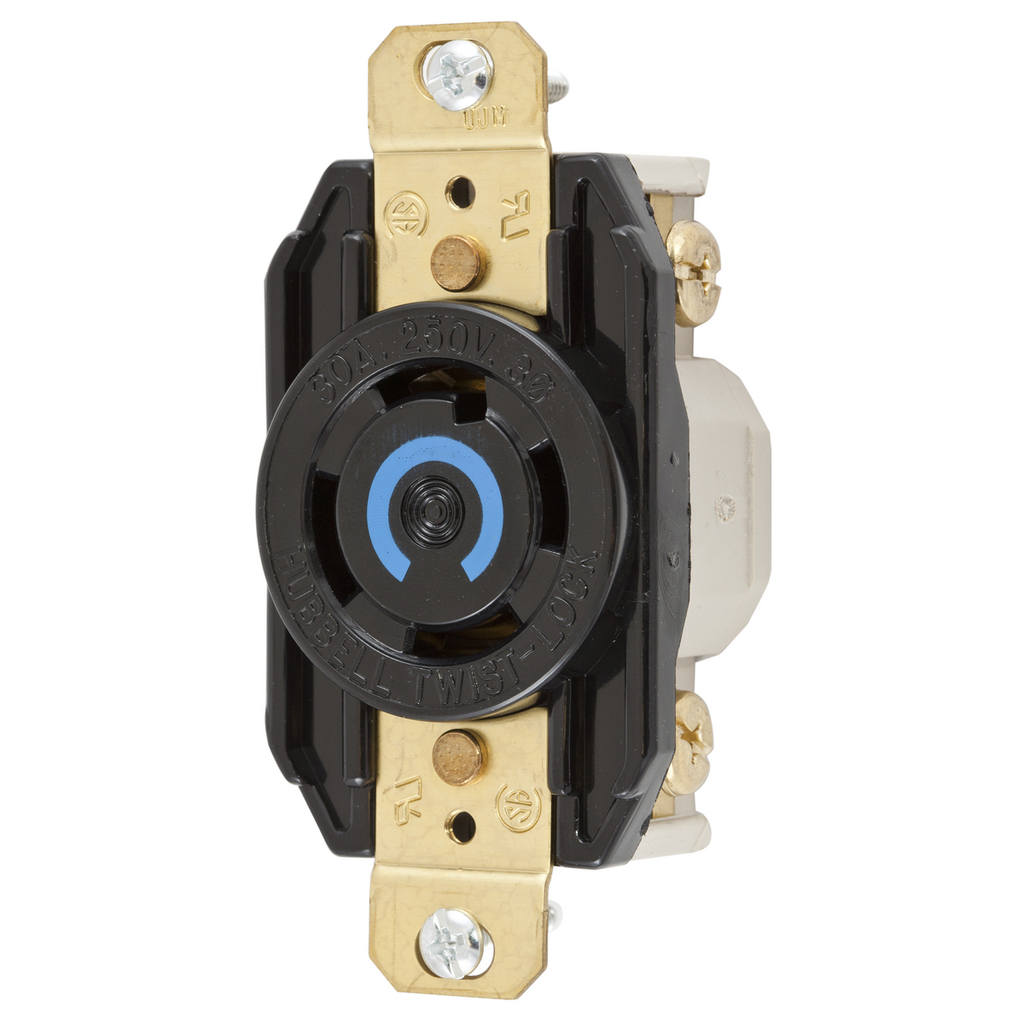

Product image for HWDK HBL2720RT CAT#HBL2720, MOD RIN
Image thumbnail 0
Image thumbnail 1
Email

HWDK HBL2720RT CAT#HBL2720, MOD RIN

Manufacturer: Hubbell / Kellems | Catalog # HBL2720RT | North Coast Part # 511098
$143.44/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Ring Terminal, Black

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
16-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
3 hp
Material
Nylon
NEMA
L15-30R
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
3.28 in x 1.7 in x 1.31 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Ring Terminal
Type
Single Flush Receptacle
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585234533
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585234533
Product UPC
78358523453
Weight
0.40 lb

Dimensions

Height
1.31 Inch
Length
3.28 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
USA
Features
  • Accepts ring terminals
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Accepts Ring Terminals
