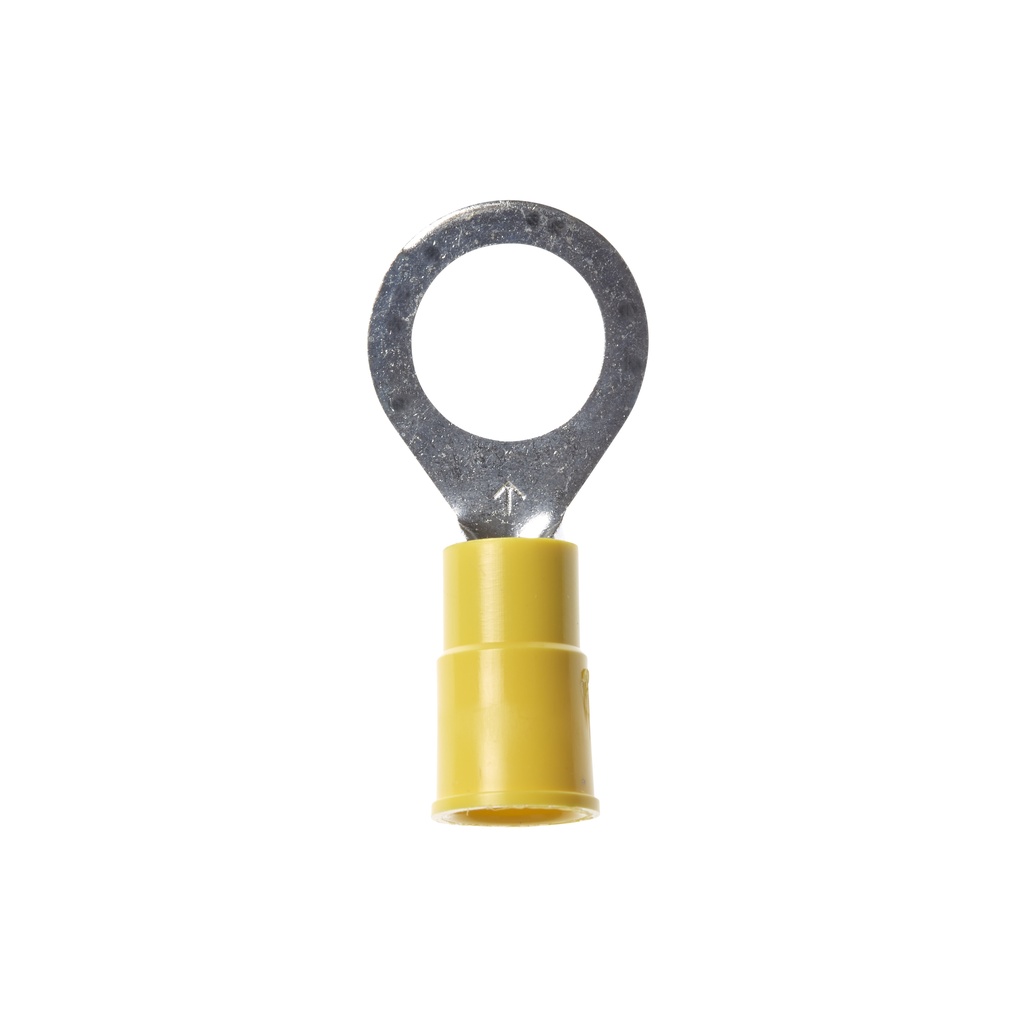

Product image for 3M RV10-516Q Highland 25/Bag Vinyl Insulated Ring
Image thumbnail 0
Image thumbnail 1
Email

3M RV10-516Q Highland 25/Bag Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7000133674 | North Coast Part # 511423
$19.85/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Thursday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
3M™ Highland™ Ring Terminal RV10-516Q accepts a wire range of AWG 12-10 and has a stud size of 5/16 inch. This ring is a standard style of tongue and is considered the safest and most reliable 3M™ Highland™ Terminal. The 3M™ Highland™ Ring Terminals are UL Listed and CSA Certified.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
10 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
CSA,E2186,UL
TC Connection
Ring
Terminal Size
5./16
Terminal Style
Standard
Terminal Type
Ring
Type
Bell End
Wire Size
12-10 AWG

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600351
Color
Yellow
GTiN
00051128600351
Product UPC
05112860035

Dimensions

Length
1.26 Inch
Overall Length
1.26 in
Thickness
0.04 in
Width
0.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
