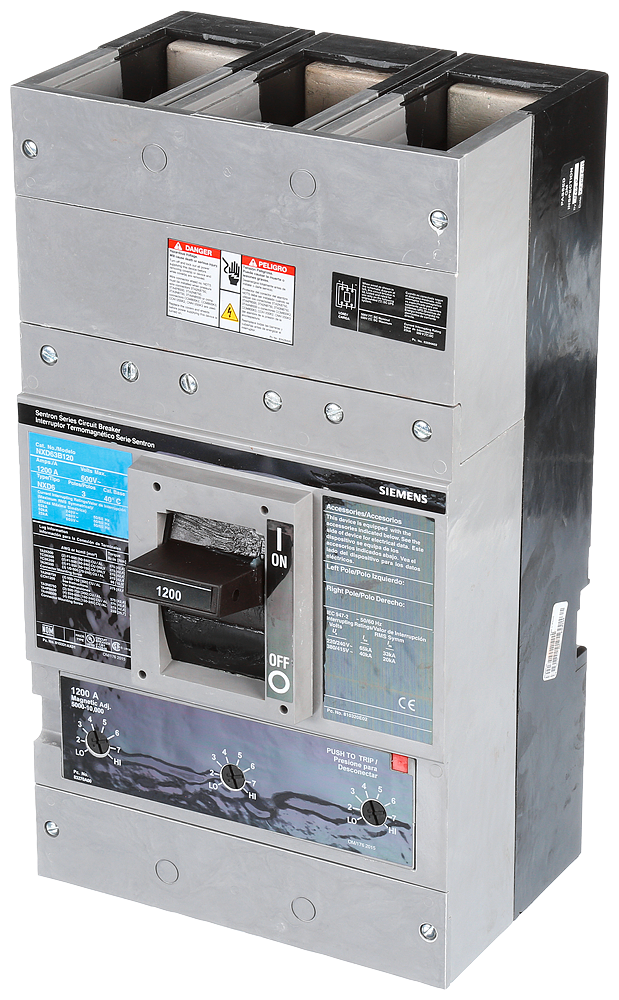

Product image for Siemens NXD63B120 3-Pole 600 VAC 1200 Amp 25 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens NXD63B120 3-Pole 600 VAC 1200 Amp 25 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # NXD63B120 | North Coast Part # 512702
$48,100.95 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER ND FRAME WITH STANDARD BREAKING CAPACITY. 1200A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 9.00 x 16.0 x 6.00.

Technical Information

Actuator
Varying
Amperage
1200 Amp
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
ND
Frequency
50/60 Hz
Interrupt Rating
25 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
UL,HACR
TC Connection
N/A
Trip Range
5000-10000
Trip Type
Thermal-Magnetic
Type
NXD6
Voltage
500 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643252349
GTiN
00783643252349
Product UPC
783643252349
Weight
54.500 lb

Dimensions

Height
9-1/2 Inch
Length
19.3 Inch
Width
12.000 in

Certifications and Compliance

Country of Origin
Mexico
