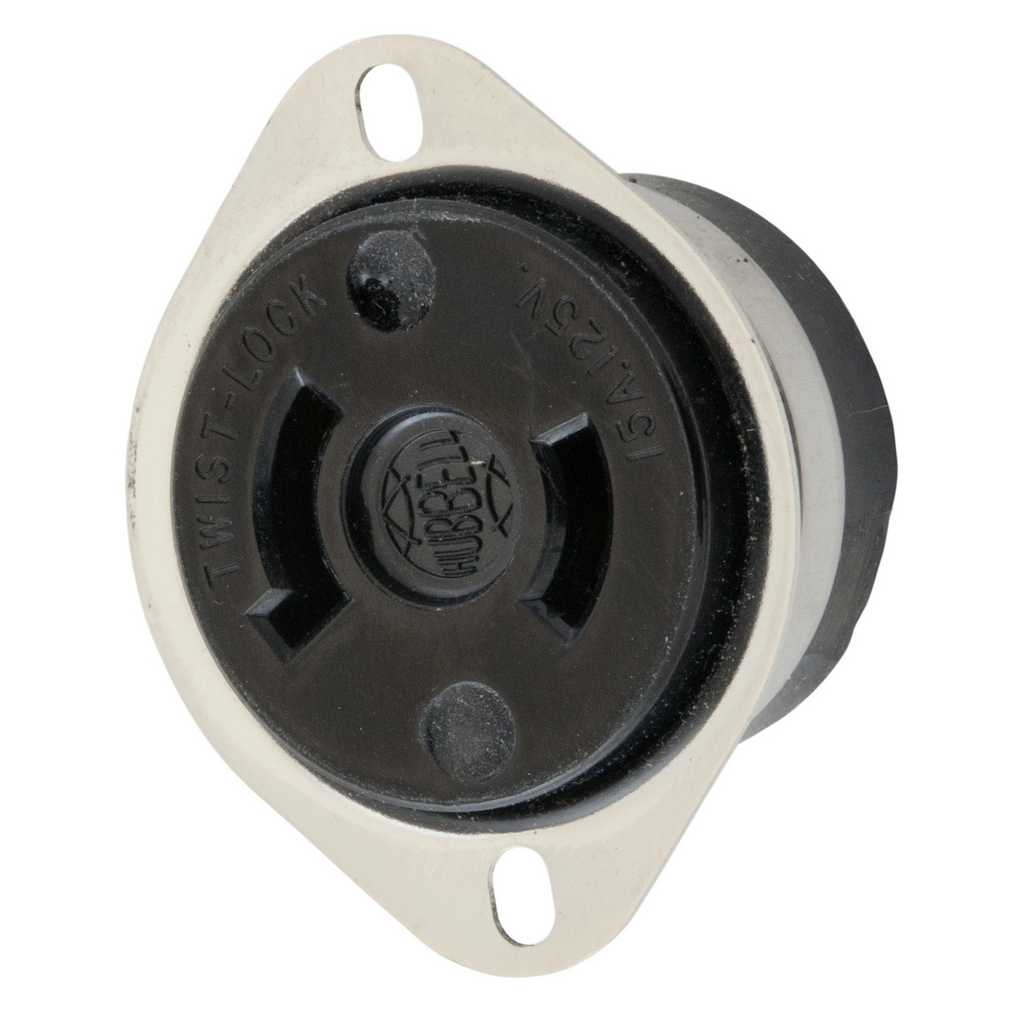

Product image for Hubbell HBL7526 Locking Flanged Receptacle, 15A 125V, L1-15R, BK
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL7526 Locking Flanged Receptacle, 15A 125V, L1-15R, BK

Manufacturer: Hubbell / Kellems | Catalog # HBL7526 | North Coast Part # 51330
$44.12/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V 2-Pole 2-Wire Non Grounding, NEMA L1-15R, Screw Terminal, Stainless steel casing, Black/Stainless.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
18-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Nylon
NEMA
L1-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
2,2
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL 498
TC Connection
Screw Terminal
Type
Single
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
2
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585237565
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585237565
Product UPC
78358523756
Weight
0.10 lb

Dimensions

Height
1.06 Inch
Length
2.03 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • Heat resistant thermoset construction
  • Stainless steel casing
  • #5-40 terminal screws
  • Mounting screws included
  • Metallic Flange
