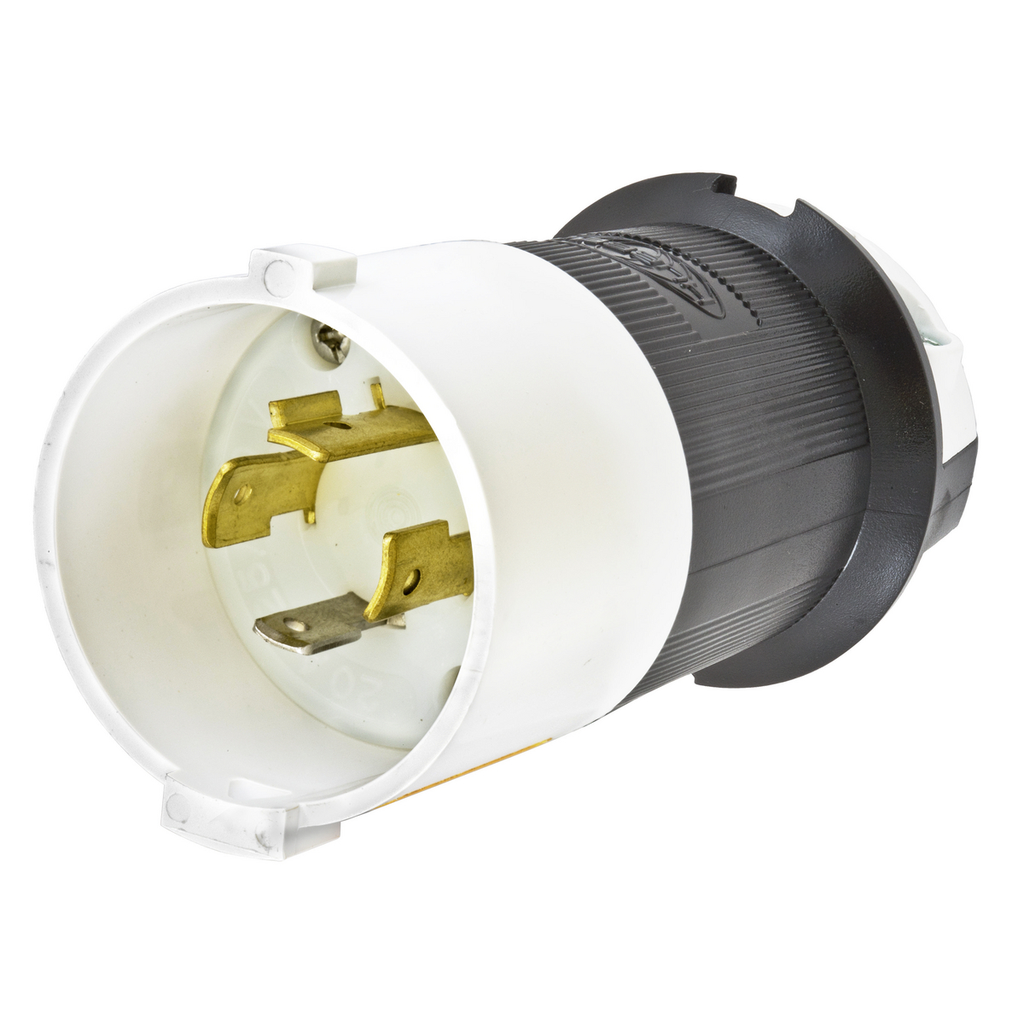

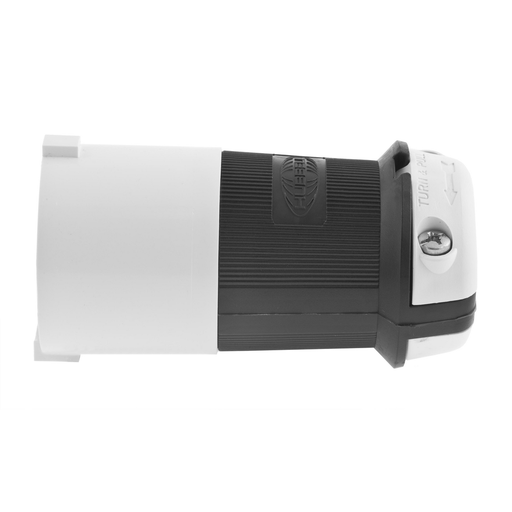

Product image for Hubbell HBL2411S Locking S/SHRD Plug, 20A 125/250V, L14-20P
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL2411S Locking S/SHRD Plug, 20A 125/250V, L14-20P

Manufacturer: Hubbell / Kellems | Catalog # HBL2411S | North Coast Part # 513565
$103.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Safety-Shroud® Plug, 20A 125/250V 3- Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Black and White Nylon body, White PBT Shroud.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
2 hp
Material
Composite
Mounting Type
Cord
NEMA
L14-20P
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C

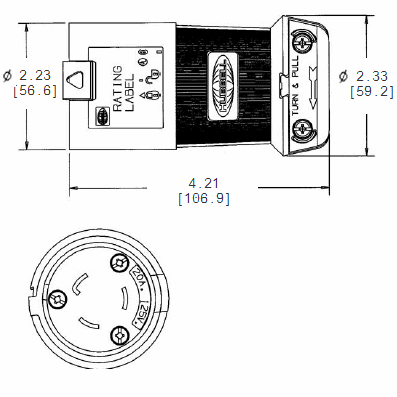

Size
2.33 in x 2.33 in x 4.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585234465
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585234465
Product UPC
78358523446
Weight
0.40 lb

Dimensions

Height
4.21 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
