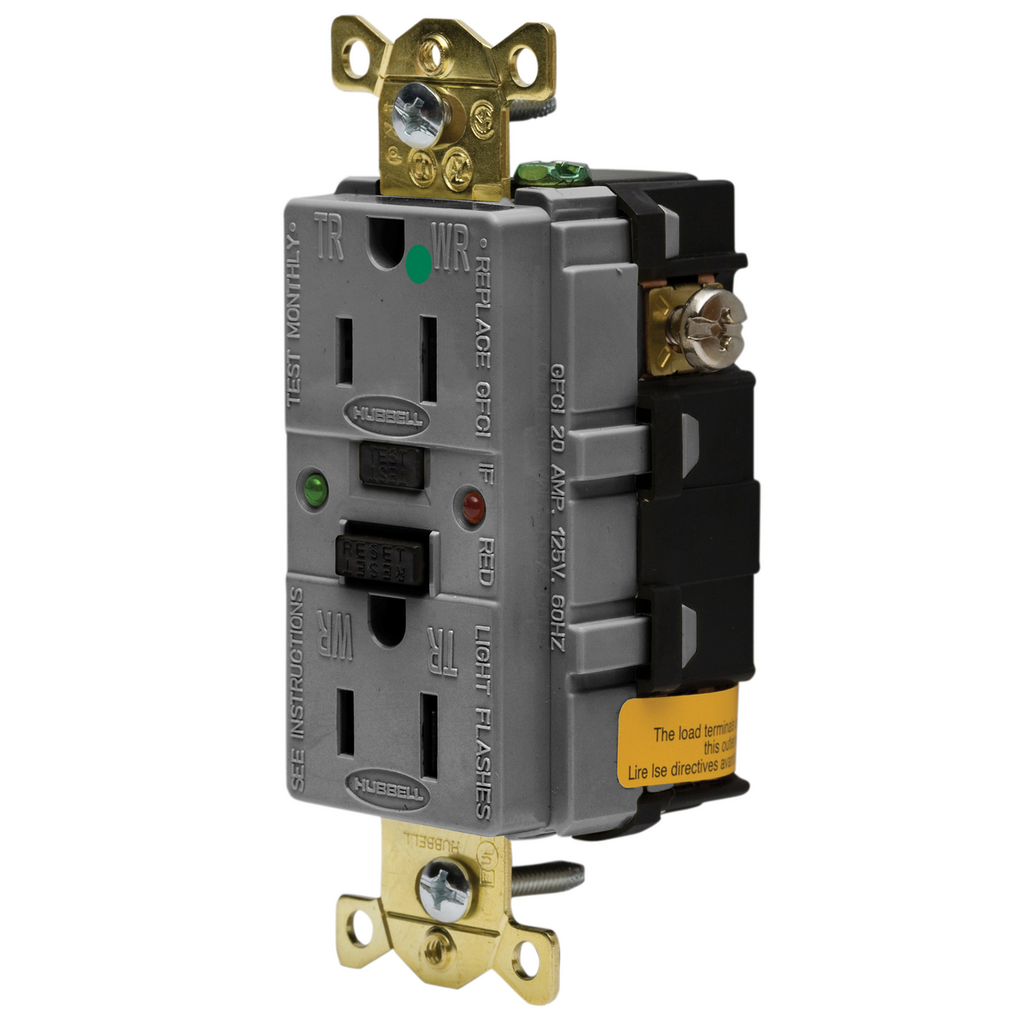

HCI GFR8200SGGY 15A 125V IND HG TAM

Manufacturer: Hubbell / Kellems | Catalog # GFR8200SGGY | North Coast Part # 514095
$155.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Power Protection Products, Receptacles, GFCI, Safety Grade Commercial Hospital Grade, Self Test, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Frequency
60 Hz
Grade
Hospital
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-30 To 150 degrees F
Size
Standard
Style
Standard
TC Connection
Back and Side Wired Terminal Screws
Type
Decorator, Tamper and Weather Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585441030
Color
Gray
GTiN
00783585441030
Product UPC
78358544103
Weight
0.4 lb

Dimensions

Height
2.2 Inch
Length
4.9 Inch
Width
3.100 in

Certifications and Compliance

Country of Origin
USA
Features
  • 10kA Short Circuit Current Rating
  • Self-Testing, Tamper and Weather Resistant, Self Grounding
  • Limits improper access to energized contacts
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
Industry Standard(s)
  • Fed.Spec
  • Meets All NEC® Requirements
