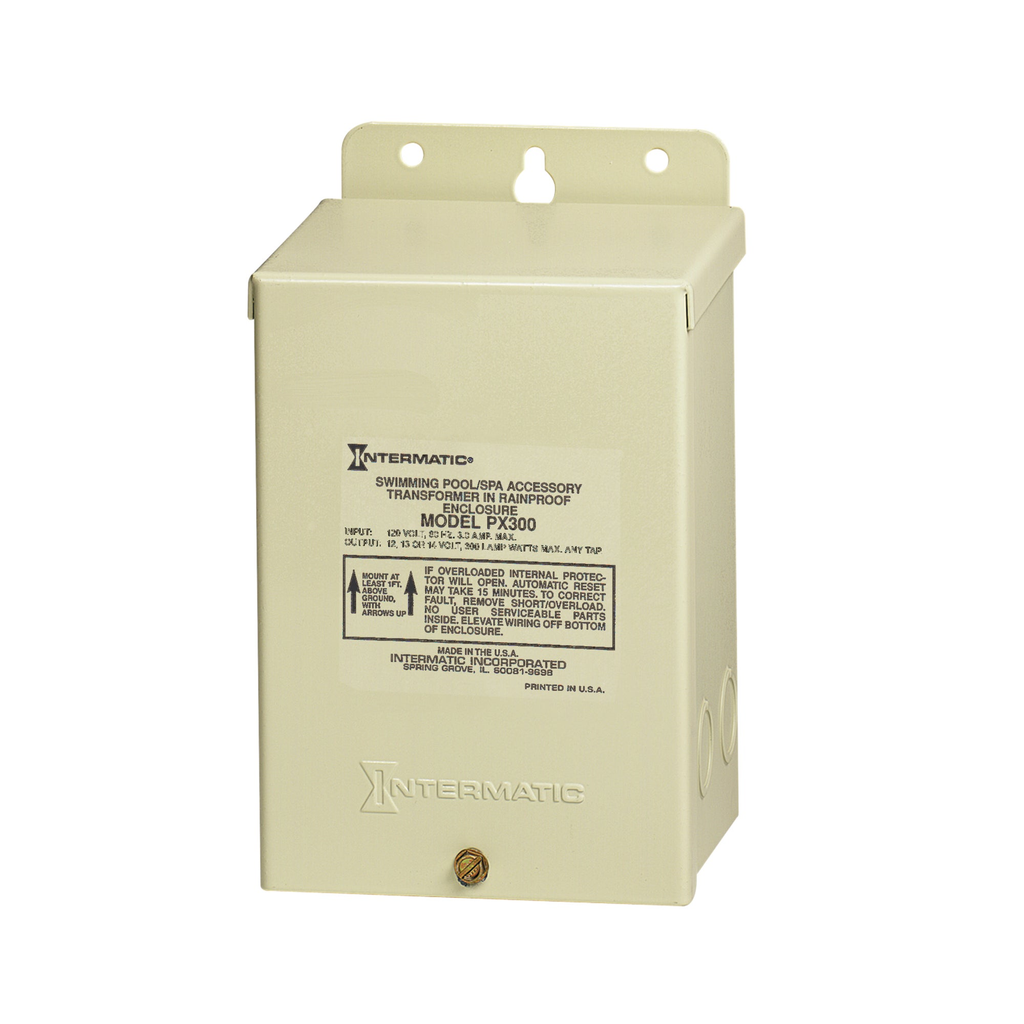

Product image for Intermatic PX300 120 VAC 3 Amp Primary 14 VAC Secondary 300 W Safety Transformer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Intermatic PX300 120 VAC 3 Amp Primary 14 VAC Secondary 300 W Safety Transformer

Manufacturer: Intermatic | Catalog # PX300 | North Coast Part # 514562
$282.15/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
These safety transformers are specifically designed to supply 12-14 VAC and are suitable for direct connection to underwater pool/spa lights. A grounded shield between the primary and secondary winding assures safe operation. Built-in circuit protection will disconnect power to the transformer in case of an overload.

Technical Information

Amperage
3 Amp
Applications
Pool or Garden Lighting, Spa Lighting, Fountain Lighting
Current
3 AMP
Enclosure
Type 3R Steel
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Frequency
60 Hz
Input Voltage
120 V
Material
Steel
Mounting Type
Bracket
Output Voltage
12 V
Power Consumption
300 W
Power Rating
300 W
Primary Voltage
120 VAC
Secondary Voltage
12 - 14 VAC
Size
7-1/4 HEIGHT X 5-1/4 WIDTH X 4-1/2 DEPTH IN, 18.4 HEIGHT X 13.3 WIDTH X 11.4 DEPTH CM
Standard
CCSAus Certified
Type
Safety Transformer
Wattage
300 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275024106
Color
Beige
GTiN
00078275024106
Product UPC
07827502410
Weight
11 lb

Dimensions

Depth
4-1/2 Inch
Height
7-1/4 Inch
Warranty Length
1 yr
Width
5.25 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Mounting brackets on the top and bottom
  • Built-in circuit protection disconnects power temporarily in case of overload
  • Complies with NEC Code 680.23 requirements for underwater luminaries
  • NA
