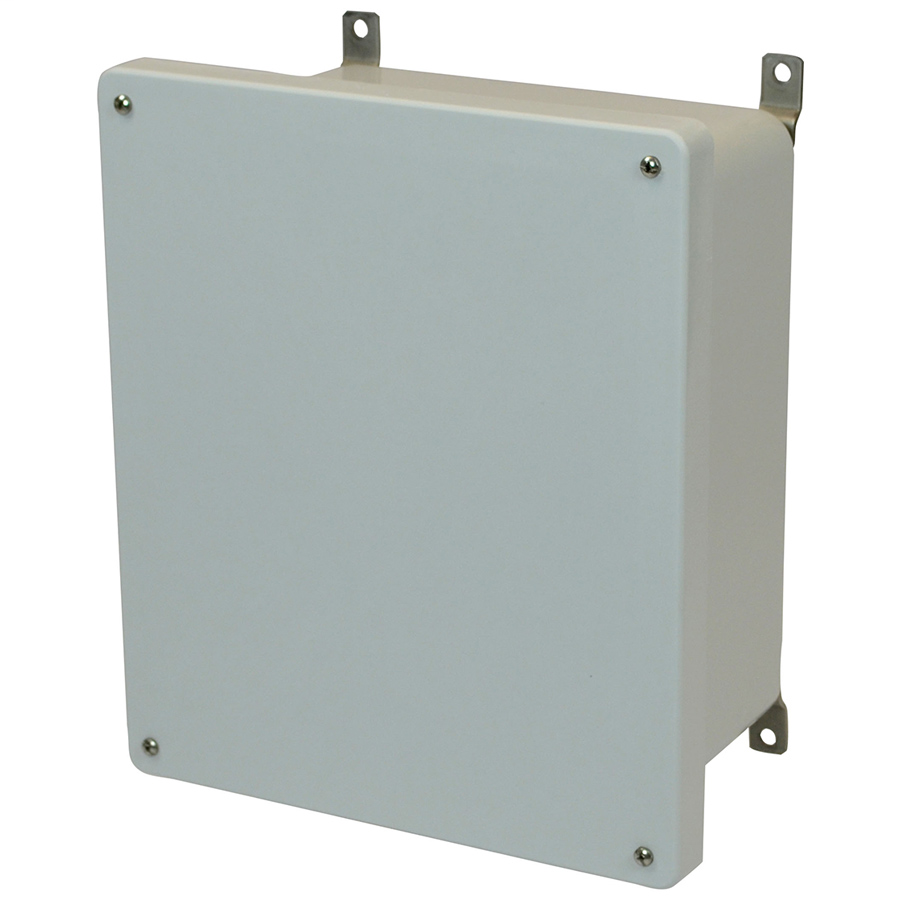

Product image for ALLIED AM1206 12x10x6 ENCLOSURE LIF
Image thumbnail 0
Image thumbnail 1
Email

ALLIED AM1206 12x10x6 ENCLOSURE LIF

Manufacturer: Allied Molded Products | Catalog # AM1206 | North Coast Part # 516679
$127.17/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet MDM Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Lift-off Type: screw down, overlapping and opaque cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=12.14", B=10.26", C=6.13", usable depth=5.68" Color:RAL 7035 - Gray Mounting:Stainless steel feet fastened to back side brass inserts

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Nonconductive Nonmetallic
Material
Fiberglass
Mounting Type
Stainless Steel Feet Fastened To Back Side Brass Inserts
Size
A=12.14", B=10.26", C=6.13", usable depth=5.68"
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
AM JIC

General Product Info

12-Digit UPC
085339912064
Color
Light Gray
Construction
Compression molded
GTiN
00085339912064
Product UPC
08533991206

Dimensions

Depth
5.68 Inch
Height
12.14 Inch
Width
10.26 in

Certifications and Compliance

Buy American Compliant
Y
  • AMU1206
  • PL120
  • PG120
  • PF120
  • AM1206RW
  • AMPOLEMNT10
  • AMP1206
  • PLA120
  • AMHS075
Additional Materials
  • 316 stainless steel mounting brackets
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polyurethane (FIP) Formed-In-Place gasket system
  • Complies with:
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175
  • RoHS directive
  • EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters)
  • CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
