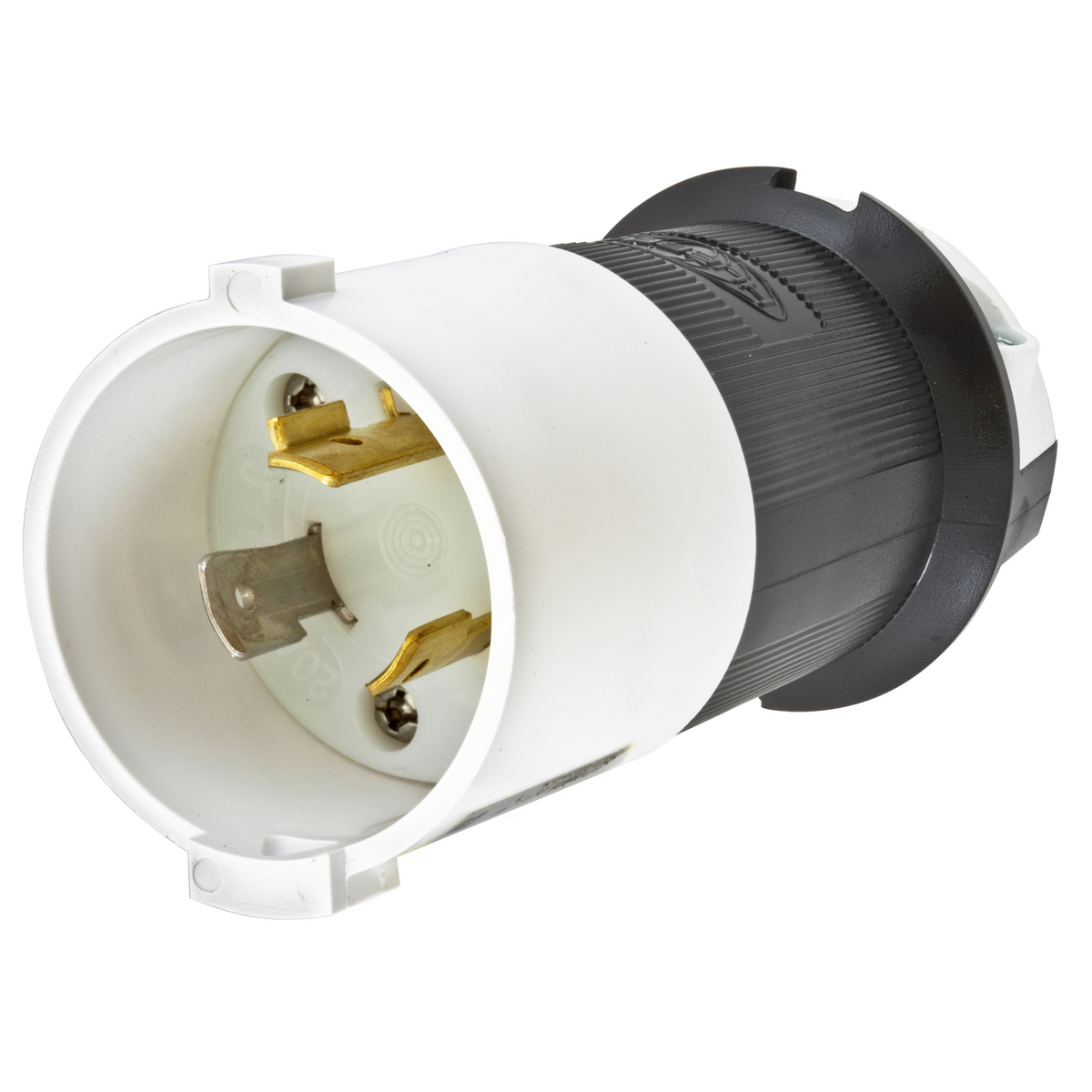

Hubbell Wiring Devices HBL2331S 20 Amp 277 Volt 2-Pole 3-Wire NEMA L7-20P Black and White Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2331S | North Coast Part # 518797
$68.31/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Safety-Shroud®, Male Plug, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20P, Screw Terminal, Black and White Nylon Body, White PBT Shroud.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
All Portable
Current
20 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA

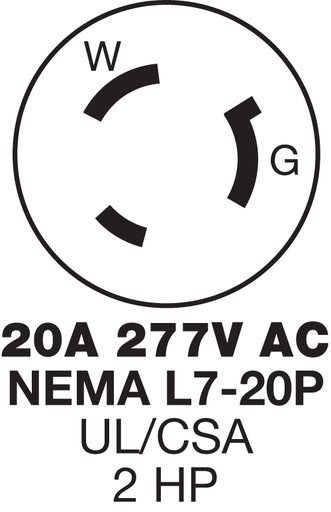

L7-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

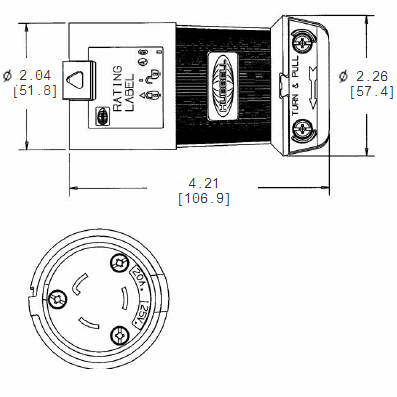

2.26 in x 2.04 in x 4.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Extra Heavy-Duty, Industrial Grade
Voltage
277 Volt
Wattage
5540 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585234229
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585234229
Product UPC
78358523422
Weight
0.35 lb

Dimensions

Height
4.21 Inch
Length
2.26 Inch
Width
2.04 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Standard Product
